Stix

Tags: LED

Add some sparkle to your space with Stix. An acrylic panel with an embedded optical pattern is illuminated by an LED source hidden in the 1"x1" aluminum core. Choose from four panel shapes, or design your own. The 1%-100% dimmng driver is concealed in the ceiling canopy, and is compatible with 0-10v, Triac, and ELV systems. Adjustable aircraft cable suspension.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

P-125

W: 5" x H: 7" x L: 23"     OAH: 33''

LED

  • X14 Edge-lit blade
    • Lumens: 2176 (initial)
    • Wattage: 14
  • CCT: 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

P-127

W: 5" x H: 7" x L: 33"     OAH: 33''

LED

  • X21 Edge-lit blade
    • Lumens: 3264 (initial)
    • Wattage: 21
  • CCT: 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

P-129

W: 5" x H: 7" x L: 44"     OAH: 33''

LED

  • X28 Edge-lit blade
    • Lumens: 4352 (initial)
    • Wattage: 28
  • CCT: 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
Finish Codes:
PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: PLG



Planar Optical LightGuide (PLG)

Planar Optical LightGuide (PLG)
Arc (XA)
Arc (XA)
Square (XS)
Square (XS)

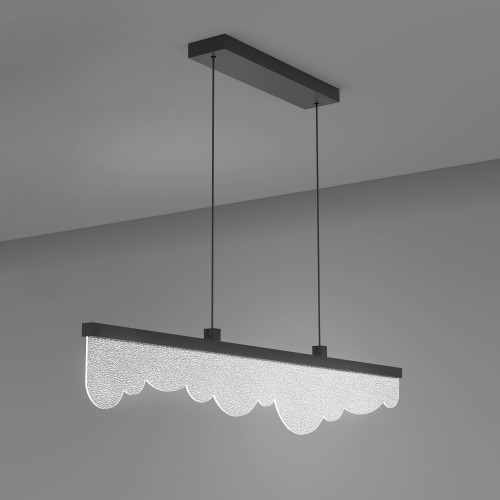

Cloud (XP)
Cloud (XP)
Wave (XW)
Wave (XW)
  1. OAH is standard unless specified.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  3. HOUSING: Aluminum extrusion with integral LED board channel, heat sink, and acrylic blade support. Machined aluminum components.
  4. MOUNTING: Supplied with adjustable aircraft cable suspension. Ceiling canopy with integral LED driver mounts to a standard octagonal junction box.
  5. ETL listed to UL standards for dry and damp locations.
  6. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
