Planar Horizontal Pendant

Tags: LED

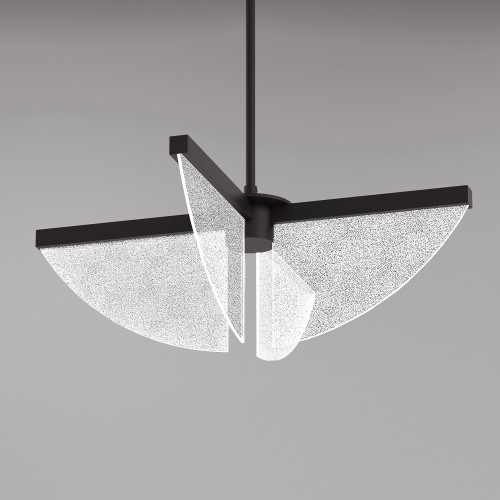

The newly redesigned Planar Horizontal pendant reinterprets familiar pendant shapes using edge-lit planes. The X-shaped LED core contains highly efficient LEDs to illuminate the acrylic below. Each acrylic blade contains an embedded optical pattern that tightly controls the light path to maximize output and minimize glare. A center LED downlight is optional. Two sizes and three standard blade shapes (or create your own design).

Spec Sheet (PDF) Find a Rep Contact Us



Dia: 13" W: 24.75" x H: 8" x L: 24.75"     OAH: 32''


  • X27 Blades Only (27w)
    • Lumens: 3069 (delivered)
    • Wattage: 27
  • X62 Blades (27w) + Downlight (35w)
    • Lumens: 3069 blades/3089 dn (delivered)
    • Wattage: 62
  • Downlight Optic Options
    • B30 - 30-deg. beam reflector
    • B60 - 60-deg. beam reflector
    • B90 - 90-deg. beam reflector
  • CCT: 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
Finish Codes:


Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: PLG


Planar Optical LightGuide (PLG)

Planar Optical LightGuide (PLG)
Planar horizontal core cone (HC)
Planar horizontal core cone (HC)
Planar horizontal core bowl (HD)
Planar horizontal core bowl (HD)
Planar horizontal core drum (HS)
Planar horizontal core drum (HS)
  1. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  2. HOUSING: Aluminum extrusion with integral LED board channel, heat sink, and acrylic blade support. Machined aluminum components.
  3. ACRYLIC: Clear 1/8" acrylic panels with laser-etched optical pattern to maximize light output and minimize glare.
  4. MOUNTING: Fixture supplied with canopy, 45-degree swivel ball and hanger for mounting to standard octagon junction box. OAH is standard unless specified.
  5. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
