Bullet

Tags: new, LED

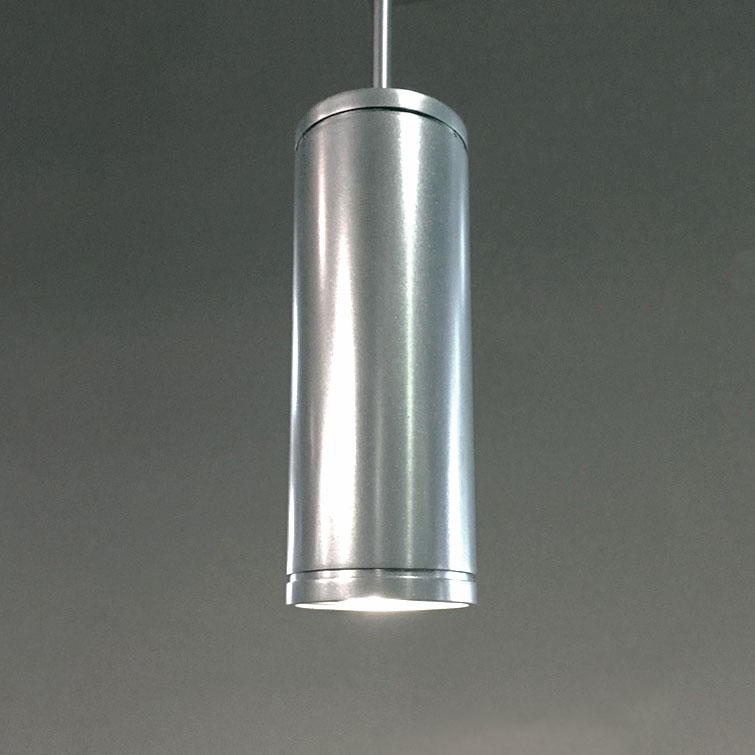

Bullet is a sleek but sturdy quarter-inch wall aluminum tube that holds an LED downlight with beams from 20 to 50 degrees. Available in two lumen outputs, the LED and reflector are surrounded by a curved inner bezel to help reduce glare.

Spec Sheet (PDF)

Fixtures

LP-690

Dia: 4.5" x H: 12"     OAH: 36"

LED

  • P10 Downlight (10w)
    • Lumens: 1208 (initial)
    • Wattage: 10
  • P23 Downlight (23w)
    • Lumens: 2158 (initial)
    • Wattage: 23
  • Downlight Optic Options
    • B20 - 20-deg. beam reflector
    • B35 - 35-deg. beam reflector
    • B50 - COB array with 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)
    • D2:ELV (Trailing Edge)
  • REM Remote mounted LED driver with enclosure by others.
  • DKC Disk ceiling driver canopy
Finish Codes:
PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

  1. OAH is standard unless specified.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  3. HOUSING: Machined aluminum .25-inch wall housing with integral downlight bezel, LED heat sink, and downlight optics.
  4. MOUNTING: Fixture supplied with canopy, 45-degree swivel ball and hanger for mounting to standard octagon junction box.
  5. UL & ULc listed for dry and damp locations.
