Manning Lighting

B-922

Tags: Borden, new

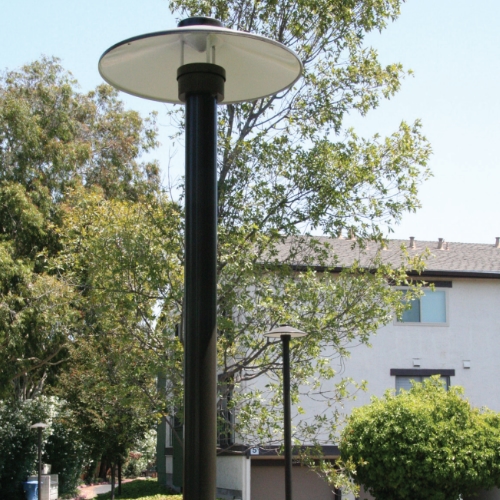

This indirect post-top luminaire from the Borden Lighting collection features a choice of two top hood styles. Inner reflector coated with a high-reflectance white powdercoat paint for broad, smooth illumination. Durable aluminum construction and heat sink offer a sturdy solution for demanding exterior applications.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

B-922

W: 22" x H: 10.75"     OAH: 96"

LED

  • E48 Downlight
    • Lumens: 4984 (initial)
    • Wattage: 48
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

Finish Codes:
Housing: PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

  1. HOUSING: Spun aluminum inner reflectors and top cover. Cast aluminum LED housing/heat sink with gasketed clear acrylic lens.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  3. DRIVER: Integral LED driver compatible with 0-10v, Triac, or ELV dimming.
  4. MOUNTING: Aluminum post supplied with base plate mounting. Standard height is 96".
