Tribute Pendant

Tags: new

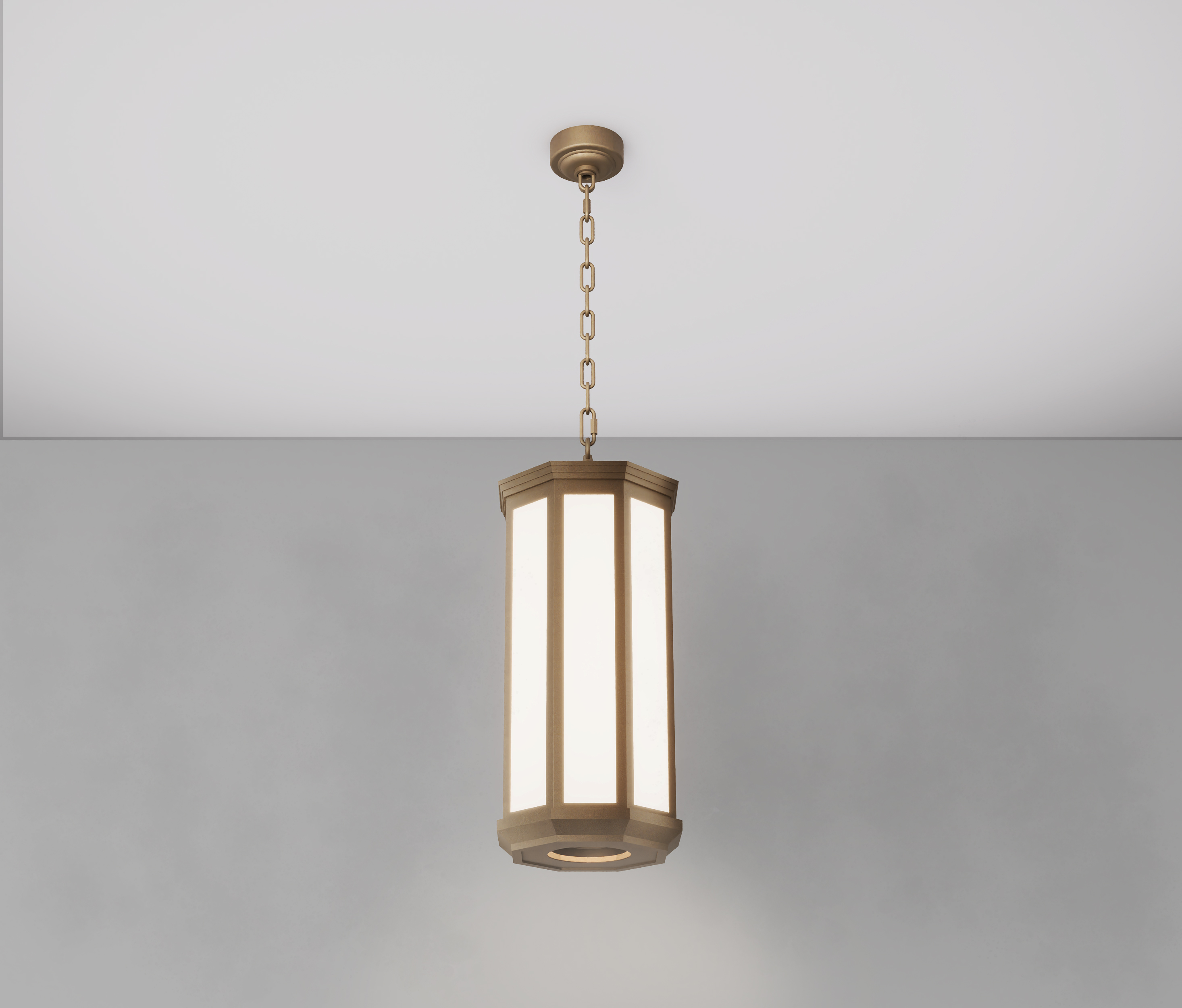

Tribute combines a stately design and robust construction that adds an elegant touch to any building exterior. Illumination is provided by LEDs rated at 90 CRI, with an optional downlight for added punch below the fixture. Different panel options provide a variety of styles and are also easily customized to suit your needs. Cast aluminum top and bottom covers add a graceful aura and protect the LED components inside from weather.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

PE-770

W: 11.25" x H: 26"     OAH: 48"

LED

  • E41 Body (41w)
    • Lumens: 3991 Initial
    • Wattage: 41
  • E78 Body & Downlight (78w)
    • Lumens: 7422 Initial
    • Wattage: 78
  • Downlight Optic Options
    • B90 - 90-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v

PE-772

W: 18.25" x H: 33.5"     OAH: 68"

LED

  • E56 Body (56w)
    • Lumens: 5488 Initial
    • Wattage: 56
  • E93 Body & Downlight (93w)
    • Lumens: 8919 Initial
    • Wattage: 93
  • Downlight Optic Options
    • B90 - 90-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v

PE-774

W: 18.25" x H: 43.5"     OAH: 86"

LED

  • E76 Body (76w)
    • Lumens: 7485 Initial
    • Wattage: 76
  • E113 Body & Downlight (113w)
    • Lumens: 10916 Initial
    • Wattage: 113
  • Downlight Optic Options
    • B90 - 90-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
Finish Codes:
Housing, Stem & Canopy: PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: AWH



Satin Ice White (AWH)

Satin Ice White (AWH)
T1 Panel (T1)
T1 Panel (T1)
T2 Panel (T2)
T2 Panel (T2)
T3 Panel (T3)
T3 Panel (T3)
T4 Panel (T4)
T4 Panel (T4)
  1. HOUSING: Consists of heavy gauge aluminum panels and solid cast aluminum top and bottom covers.
  2. MOUNTING: Fixture supplied with painted canopy, 45-degree swivel ball and hanger for mounting to standard octagon junction box.
  3. CIRCUITS: Dual-level circuiting for interior/downlight when applicable.
  4. ETL listed to UL standards for wet locations.
  5. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
