Manning Lighting
LP-672-08-PT(LSV)-P57-35-120-WH-REM
LP-674-12-PT(LSV)-P115-35-120-WH-REM

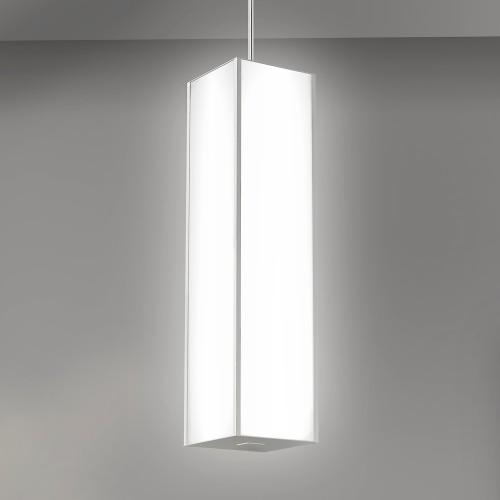

LP-672-08-PT(LSV)-P57-35-120-WH-REM Hover to Zoom
LP-672-08-PT(LSV)-P57-35-120-WH-REM — download hi-res image

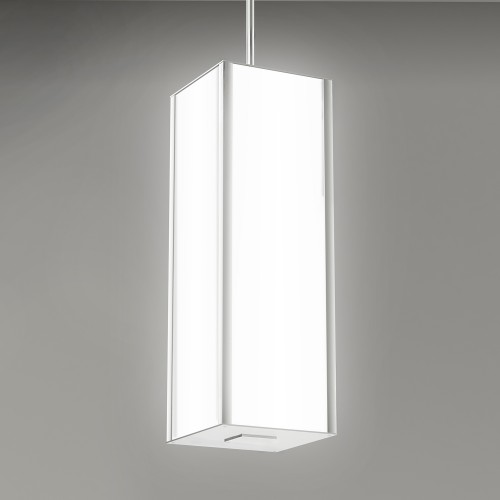

LP-674-12-PT(LSV)-P115-35-120-WH-REM Hover to Zoom
LP-674-12-PT(LSV)-P115-35-120-WH-REM — download hi-res image

StiltXL Square

Tags: new, LED

The StiltXL Square series is sleek, clean, and unabshedly square. Eight-, ten-, or 12-inch wide acrylic panels up to eight feet tall are held in place with a minimal aluminum extrusion. An aluminum panel or optional downlight are at bottom. Drivers can be located in a metal housing at top of fixture, in ceiling canopy, or remote.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LP-672-08

W: 8" x H: 24" x L: 8"     OAH: 48''

LED

  • P57 Body Only (57w)
    • Lumens: 6042 (delivered)
    • Wattage: 57
  • P80 Body (57w) + Downlight (23w)
    • Lumens: 8210 (delivered)
    • Wattage: 80
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-672-10

W: 10" x H: 24" x L: 10"     OAH: 48''

LED

  • P57 Body Only (57w)
    • Lumens: 6042 (delivered)
    • Wattage: 57
  • P80 Body (57w) + Downlight (23w)
    • Lumens: 8210 (delivered)
    • Wattage: 80
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-672-12

W: 12" x H: 24" x L: 12"     OAH: 48''

LED

  • P57 Body Only (57w)
    • Lumens: 6042 (delivered)
    • Wattage: 57
  • P80 Body (57w) + Downlight (23w)
    • Lumens: 8210 (delivered)
    • Wattage: 80
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-673-08

W: 8" x H: 36" x L: 8"     OAH: 60''

LED

  • P86 Body Only (86w)
    • Lumens: 9065 (delivered)
    • Wattage: 86
  • P110 Body (86w) + Downlight (23w)
    • Lumens: 11233 (delivered)
    • Wattage: 109
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-673-10

W: 10" x H: 36" x L: 10"     OAH: 60''

LED

  • P86 Body Only (86w)
    • Lumens: 9065 (delivered)
    • Wattage: 86
  • P110 Body (86w) + Downlight (23w)
    • Lumens: 11233 (delivered)
    • Wattage: 109
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-673-12

W: 12" x H: 36" x L: 12"     OAH: 60''

LED

  • P86 Body Only (86w)
    • Lumens: 9065 (delivered)
    • Wattage: 86
  • P110 Body (86w) + Downlight (23w)
    • Lumens: 11233 (delivered)
    • Wattage: 109
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-674-08

W: 8" x H: 48" x L: 8"     OAH: 72''

LED

  • P115 Body Only (115w)
    • Lumens: 12088 (delivered)
    • Wattage: 115
  • P138 Body (115w) + Downlight (23w)
    • Lumens: 14256 (delivered)
    • Wattage: 138
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-674-10

W: 10" x H: 48" x L: 10"     OAH: 72''

LED

  • P115 Body Only (115w)
    • Lumens: 12088 (delivered)
    • Wattage: 115
  • P138 Body (115w) + Downlight (23w)
    • Lumens: 14256 (delivered)
    • Wattage: 138
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-674-12

W: 12" x H: 48" x L: 12"     OAH: 72''

LED

  • P115 Body Only (115w)
    • Lumens: 12088 (delivered)
    • Wattage: 115
  • P138 Body (115w) + Downlight (23w)
    • Lumens: 14256 (delivered)
    • Wattage: 138
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-676-08

W: 8" x H: 72" x L: 8"     OAH: 96''

LED

  • P173 Body Only (173w)
    • Lumens: 18133 (delivered)
    • Wattage: 173
  • P196 Body (173w) + Downlight (23w)
    • Lumens: 20301 (delivered)
    • Wattage: 196
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-676-10

W: 10" x H: 72" x L: 10"     OAH: 96''

LED

  • P173 Body Only (173w)
    • Lumens: 18133 (delivered)
    • Wattage: 173
  • P196 Body (173w) + Downlight (23w)
    • Lumens: 20301 (delivered)
    • Wattage: 196
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-676-12

W: 12" x H: 72" x L: 12"     OAH: 96''

LED

  • P173 Body Only (173w)
    • Lumens: 18133 (delivered)
    • Wattage: 173
  • P196 Body (173w) + Downlight (23w)
    • Lumens: 20301 (delivered)
    • Wattage: 196
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-678-08

W: 8" x H: 96" x L: 8"     OAH: 120''

LED

  • P230 Body Only (230w)
    • Lumens: 24177 (delivered)
    • Wattage: 230
  • P253 Body (230w) + Downlight (23w)
    • Lumens: 26345 (delivered)
    • Wattage: 253
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-678-10

W: 10" x H: 96" x L: 10"     OAH: 120''

LED

  • P230 Body Only (230w)
    • Lumens: 24177 (delivered)
    • Wattage: 230
  • P253 Body (230w) + Downlight (23w)
    • Lumens: 26345 (delivered)
    • Wattage: 253
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-678-12

W: 12" x H: 96" x L: 12"     OAH: 120''

LED

  • P230 Body Only (230w)
    • Lumens: 24177 (delivered)
    • Wattage: 230
  • P253 Body (230w) + Downlight (23w)
    • Lumens: 26345 (delivered)
    • Wattage: 253
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

Finish Codes:
PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Single Stem (SIN)
Single Stem (SIN)
Aircraft cable with cord (KBL)
Aircraft cable with cord (KBL)

  1. OAH is standard unless specified.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  3. HOUSING: White 1/8" thick extruded acrylic diffuser and bottom lens. Extruded aluminum supports.
  4. ETL listed to UL standards for dry and damp locations.
  5. MOUNTING: Fixture supplied with canopy, 45-degree swivel ball and hanger for mounting to standard octagon junction box.
  6. CIRCUITS: Dual-level circuiting for interior lamps and downlight (if specified) standard.
  7. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
  8. DOWNLIGHT: Downlight increases H and OAH dimensions by 2".
  9. DKC CANOPY: Canopy is 6" dia. (D2 dim.) for P57 option. All others use 12" dia canopy (D3 dim.).
