Manning Lighting
LP-390-PT(LTM)-PT(MCP)-P32-35-120-CD(LGT)
LP-390-PT(LTM)-PT(MCP)-P32-35-D0-120-WH

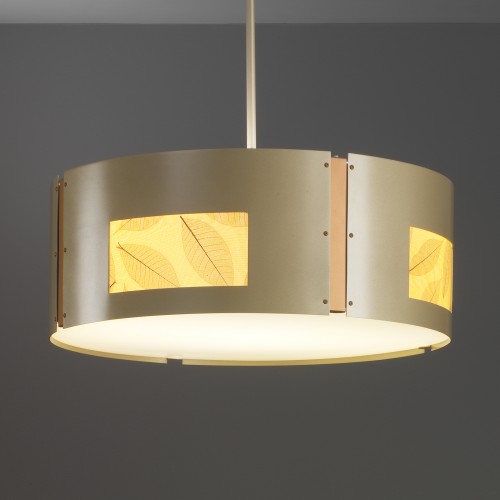

LP-390-PT(LTM)-PT(MCP)-P32-35-120-CD(LGT) Hover to Zoom
LP-390-PT(LTM)-PT(MCP)-P32-35-120-CD(LGT) — download hi-res image

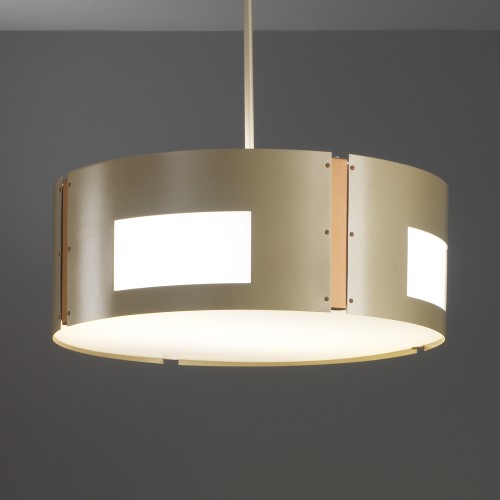

LP-390-PT(LTM)-PT(MCP)-P32-35-D0-120-WH Hover to Zoom
LP-390-PT(LTM)-PT(MCP)-P32-35-D0-120-WH — download hi-res image

Elements Pendant

Tags: colorful, customize, LED

The Elements pendants feature windows of texture and color using any one of our configured diffuser lens materials. Concentric outer panels include four windows for diffuser accents. Inner spun housing available in matching or complementary finish. Bottom white acrylic lens. Fluorescent lamp body provides both uplight and downlight while minimizing debris inside the fixture. Swivel 45-degree hanger standard. Two sizes.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LP-390

Dia: 18" x H: 8"     OAH: 34''

LED

  • B32 Uplight + Downlight
    • Lumens: 1097 up/1097 down (delivered)
    • Wattage: 32
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 3N60 (3) 60 watt incandescent

LP-392

Dia: 24" x H: 9"     OAH: 35''

LED

  • B48 Downlight + Uplight (48w)
    • Lumens: 1402 up/1533 down (delivered)
    • Wattage: 48
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 3N60 (3) 60 watt incandescent

Finish Codes:
Primary Finish: BA or PT
Secondary Finish: BA or PT



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or CD



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Ambia configured diffuser (specify option) (CD)

Specify CD(XXX).

Toffee Leaves (LGT)
Beach Grass (LSB)
Jade Taipei (LJT)
Ivory Taipei (LVT)
Tiger Taipei (LTT)
Hampton Linen (LHL)
Honeycomb (LHC)
Goldspun (LGS)
Silverspun (LSS)
Nido (LNO)
Revolve Champagne (LRP)
Spider Letter (LSL)

Single Stem (SIN)
Single Stem (SIN)
Aircraft Cable (CBL)
Aircraft Cable (CBL)
Satellite Rods (QAD)
Satellite Rods (QAD)
1/4
1/4" Plate Fins (FIN)

  1. OAH is standard unless specified.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  3. HOUSING: Heavy gauge spun solid aluminum drum, hardware, and solid aluminum trim panels can be ordered with complementary finishes. Solid aluminum lamp plate reflector is coated with a reflective white enamel finish.
  4. MOUNTING: Fixture is supplied with a universal mounting strap assembly that attaches to a standard octagonal junction box.
  5. ETL listed to UL standards for dry and damp locations
  6. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
