Java Pendant

Tags: colorful, customize, LED

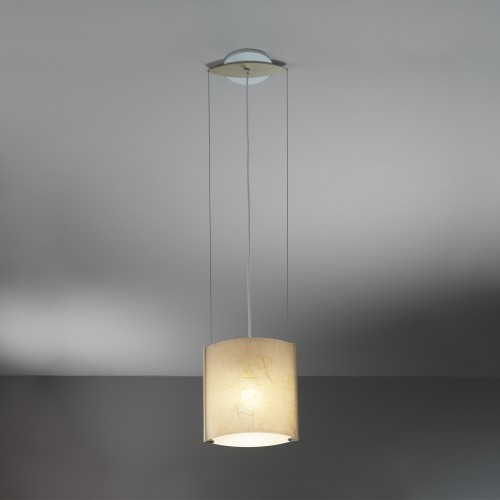

The Java series employs softly curved diffusers and visually minimal extruded side rails. The aircraft cable and cord suspended pendants are available in two sizes with either efficientLED, compact fluorescen,t or economic incandescent lamping. An opal white bottom diffuser is standard. "Floating canopy" hides mounting hardware from view.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LP-370

W: 6" x H: 10" x L: 10"     OAH: 36''

LED

  • P8
    • Lumens: 860 (initial)
    • Wattage: 8
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
  • 1N60 (1) 60 watt incandescent

LP-372

W: 6" x H: 24" x L: 10"     OAH: 50''

LED

  • P27 Body only w/bottom lens (27W)
    • Lumens: 2730 (delivered)
    • Wattage: 27
  • P63 Body (27w) + Downlight (36w)
    • Lumens: 5471 (delivered)
    • Wattage: 63
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
  • 3NT40 (3) 40 watt T-10 incandescent
Finish Codes:
BA or PT



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or CD

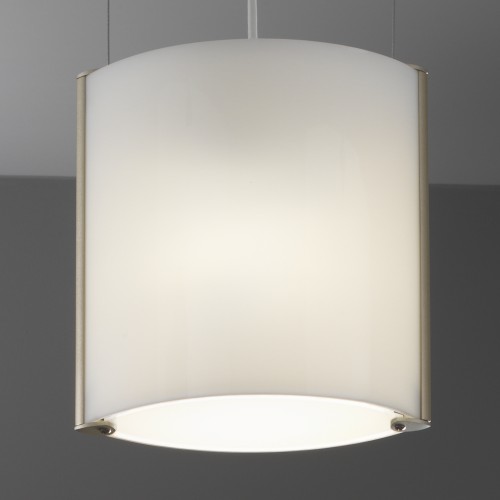

Opal White Acrylic (WH)

Opal White Acrylic (WH)

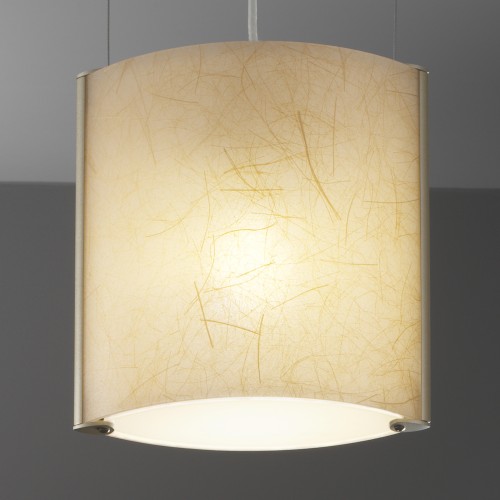

Ambia configured diffuser (specify option) (CD)

Specify CD(XXX).

Toffee Leaves (LGT)
Beach Grass (LSB)
Jade Taipei (LJT)
Ivory Taipei (LVT)
Tiger Taipei (LTT)
Hampton Linen (LHL)
Honeycomb (LHC)
Goldspun (LGS)
Silverspun (LSS)
Nido (LNO)
Spider Letter (LSL)
  1. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
  2. OAH is standard unless specified.
  3. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  4. HOUSING: Solid aluminum canopy plate, extruded aluminum side rail, and machined accents can be ordered with either a painted or brushed aluminum finish.
  5. MOUNTING: Fixture is supplied with a universal mounting strap assembly that attaches to a standard octagonal junction box.
  6. White bottom acrylic lens standard.
  7. ETL listed to UL standards for dry and damp locations
