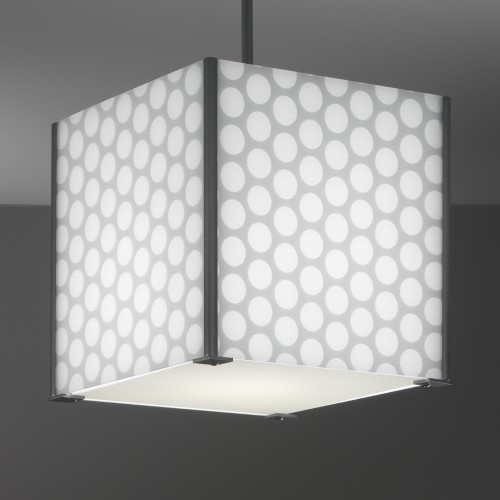

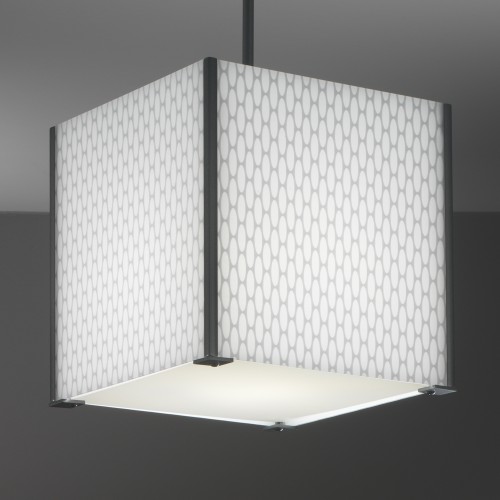

Latte Pendant

Tags: colorful, customize, LED

Latte has a sensible geometry, minute extruded corner supports, and unique machined bottom lens accents. Choose from 12 standard configured diffuser options or opal white acrylic. The floating canopy and accents provide a bi-color match for the sconces. Incandescent and fluorescent lampings are offered.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LP-360

W: 10" x H: 10" x L: 10"     OAH: 35"

LED

  • P16
    • Lumens: 2200 (initial)
    • Wattage: 16
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 1N75 (1) 75 watt incandescent

LP-362

W: 10" x H: 24" x L: 10"     OAH: 49"

LED

  • P27 Body only w/bottom lens (27W)
    • Lumens: 2730 (delivered)
    • Wattage: 27
  • P63 Body (27w) + Downlight (36w)
    • Lumens: 5471 (delivered)
    • Wattage: 63
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 1N150 (1) 150 watt incandescent

Finish Codes:
BA or PT



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or CD

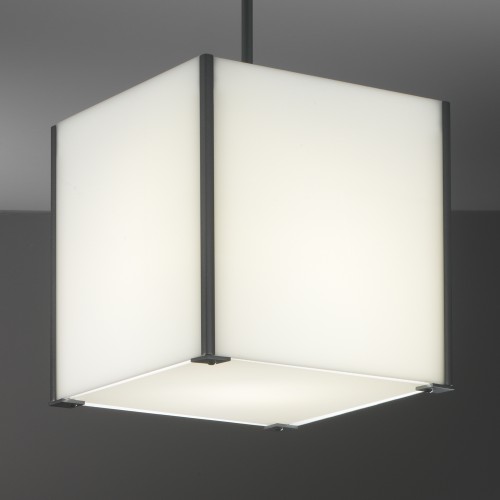

Opal White Acrylic (WH)

Opal White Acrylic (WH)

Ambia configured diffuser (specify option) (CD)

Specify CD(XXX).

Toffee Leaves (LGT)
Beach Grass (LSB)
Jade Taipei (LJT)
Ivory Taipei (LVT)
Tiger Taipei (LTT)
Hampton Linen (LHL)
Honeycomb (LHC)
Goldspun (LGS)
Silverspun (LSS)
Nido (LNO)
Revolve Champagne (LRP)
Spider Letter (LSL)

  1. OAH is standard unless specified.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  4. HOUSING: Extruded aluminum corner supports, machined accents, steel stem, and fabricated steel square canopy can be ordered with complementary finishes. Internal frame components in highly reflective white enameled aluminum.
  5. MOUNTING: Fixture is supplied with a universal mounting strap assembly that attaches to a standard octagonal junction box.
  6. CIRCUITS: Dual-level circuiting for interior lamps/downlight standard.
  7. ETL listed to UL standards for dry and damp locations
  8. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
