Manning Lighting

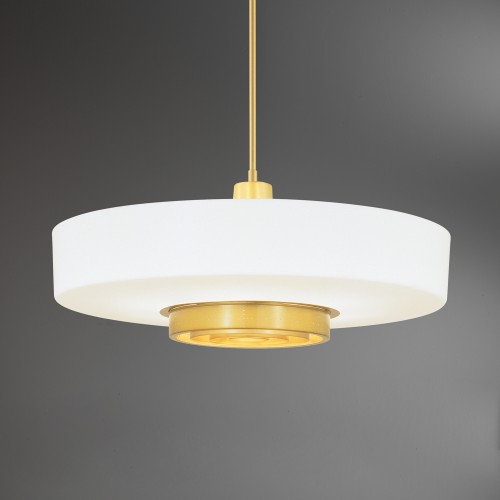

LP-221-PT(MGD)-B66-35-D0-CON-120-WH
LP-221-PT(MGD)-B66-35-D0-CON-120-WH Hover to Zoom
LP-221-PT(MGD)-B66-35-D0-CON-120-WH — download hi-res image

Height Pendant (Disk)

Tags: retro

Height gets its name because it is designed with the needs of low ceilings in mind, especially in houses of worship. The pendant features a downlight at the bottom of a low-profile acrylic diffuser. Fluorescent or incandescent lamp options available.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LP-219

Dia: 17.25" x H: 11.25"     OAH: 38''

LED

  • B49 Uplight + Downlight
    • Lumens: 6009 (initial)
    • Wattage: 49
  • Downlight Optic Options
    • CON - Concentric Ring Louver (approx. 50-deg. beam)
    • ECR - Black Egg Crate Louver (approx. 40-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 3N100 / 1QP120 (3) 100 watt incandescent (1) 120 watt PAR 38 quartz halogen

LP-221

Dia: 24" x H: 12.5"     OAH: 51''

LED

  • B66 Uplight + Downlight
    • Lumens: 8080 (initial)
    • Wattage: 66
  • Downlight Optic Options
    • CON - Concentric Ring Louver (approx. 50-deg. beam)
    • ECR - Black Egg Crate Louver (approx. 40-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 6N100 / 1R500 (6) 100 watt incandescent (1) 500 watt R40 med. base

LP-223

Dia: 30" x H: 12.5"     OAH: 65''

LED

  • B95 Uplight + Downlight
    • Lumens: 5160 up/4984 down (delivered)
    • Wattage: 95
  • Downlight Optic Options
    • CON - Concentric Ring Louver (approx. 50-deg. beam)
    • ECR - Black Egg Crate Louver (approx. 40-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 6N100 / 1R500 (6) 100 watt incandescent (1) 500 watt R40 med. base

Finish Codes:
BA or PT



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



White Acrylic (WH)

White Acrylic (WH)

  1. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  2. HOUSING: Consists of a white thermoformed acrylic diffuser with spun aluminum downlight bezel assembly.
  3. MOUNTING: Fixture supplied with a painted canopy, 45-degree swivel ball and hanger for mounting to standard octagon junction box.
  4. CIRCUITS: Dual-level circuiting for interior lamps/downlight standard.
  5. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
