Aston Pendant

Tags: LED

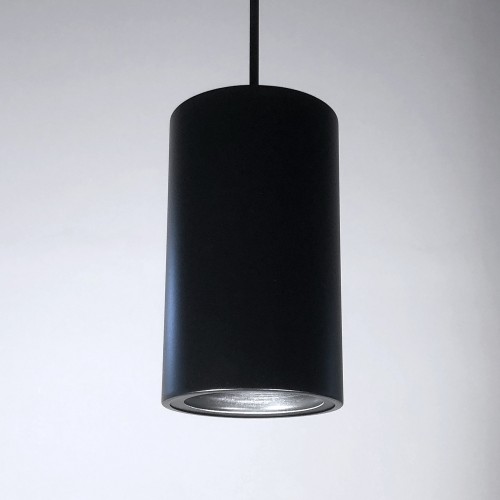

The Aston pendant is a no-nonsense workhorse designed to inexpensively and efficiently light any space. This discreet cylinder features an LED downlight with more than 8000 delivered lumens and several reflector options to direct the light where you need it. The LED and reflector are recessed in a black bottom bezel to minimize glare.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LP-009

Dia: 9" x H: 15"     OAH: 53"

LED

  • P55 Downlight Only (55w)
    • Lumens: 6205 (delivered)
    • Wattage: 55
  • P89 Downlight Only (89w)
    • Lumens: 8074 delivered
    • Wattage: 89
  • Downlight Optic Options
    • B60 - 60-deg. beam reflector
    • B90 - 90-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
Finish Codes:
Housing: PT or BA



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

  1. OAH is standard unless specified.
  2. ETL listed to UL standards for dry and damp locations
  3. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  4. HOUSING: Consists of a spun aluminum cylinder housing.
  5. MOUNTING: Fixture supplied with a painted canopy, 45-degree swivel ball and hanger for mounting to standard octagon junction box.
  6. Removable bottom reflector.
  7. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
