Manning Lighting
LB-270-PT(DSV)-BA-S16-35-D0-120-WH-M1
LB-272-PT(MSV)-BA-S10-35-D0-120-WH-M1
LB-272-PT(DBZ)-WV(CHR)-S10-35-D0-120-WH-M4
LB-272-PT(LSV)-GF-S10-35-D0-120-WH-M2
LB-272-PT(LSV)-PT(WHT)-S10-35-D0-120-WH-M5

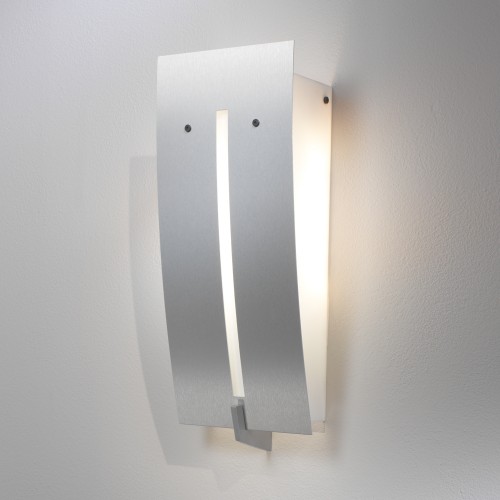

LB-270-PT(DSV)-BA-S16-35-D0-120-WH-M1 Hover to Zoom
LB-270-PT(DSV)-BA-S16-35-D0-120-WH-M1 — download hi-res image

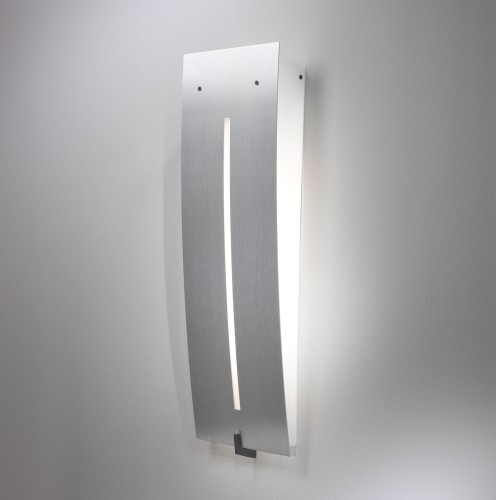

LB-272-PT(MSV)-BA-S10-35-D0-120-WH-M1 Hover to Zoom
LB-272-PT(MSV)-BA-S10-35-D0-120-WH-M1 — download hi-res image

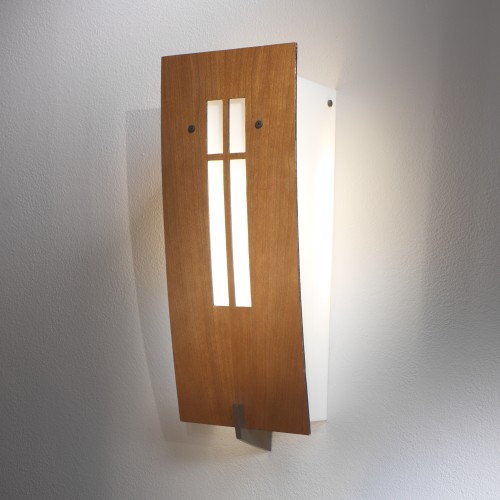

LB-272-PT(DBZ)-WV(CHR)-S10-35-D0-120-WH-M4 Hover to Zoom
LB-272-PT(DBZ)-WV(CHR)-S10-35-D0-120-WH-M4 — download hi-res image

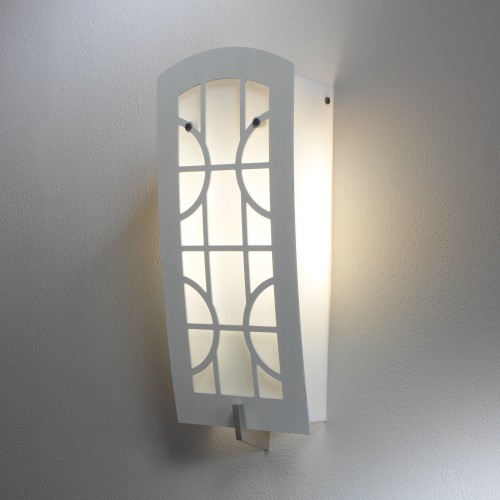

LB-272-PT(LSV)-GF-S10-35-D0-120-WH-M2 Hover to Zoom
LB-272-PT(LSV)-GF-S10-35-D0-120-WH-M2 — download hi-res image
LB-272-PT(LSV)-PT(WHT)-S10-35-D0-120-WH-M5 Hover to Zoom
LB-272-PT(LSV)-PT(WHT)-S10-35-D0-120-WH-M5 — download hi-res image

Milan Sconce

Tags: distinctive, customize, panels, LED

The Milan sconce features an elegant curved panel in six standard patterns surrounding an acrylic inner diffuser. Panel finishes include wood veneer, brushed or grinder finish aluminum, or painted. Incandescent or energy saving fluorescent lamps available.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LB-270

W: 8" x H: 26.5" Ext: 4"

LED

  • S16
    • Lumens: 995 (delivered)
    • Wattage: 16
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 2NT60 (2) 60 watt T-10 incandescent

LB-272

W: 6" x H: 15" Ext: 4"

LED

  • S16
    • Lumens: 995 (delivered)
    • Wattage: 16
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 1NT60 (1) 60 watt T-10 incandescent

Finish Codes:
Finial: PT
Panel: BA or PT or WV



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Wood Veneer (WV)

Specify WV(XXX).

Maple Veneer (MPL)
Cherry Veneer (CHR)
Light Oak Veneer (LOK)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Slot Panel Milan (M1)
Slot Panel Milan (M1)
4Square Panel Milan (M2)
4Square Panel Milan (M2)
Gothic Panel Milan (M3)
Gothic Panel Milan (M3)
Newcross Panel Milan (M4)
Newcross Panel Milan (M4)
Welsh Panel Milan (M5)
Welsh Panel Milan (M5)
Oldcross Panel Milan (M6)
Oldcross Panel Milan (M6)

  1. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  2. HOUSING: White thermoformed acrylic diffuser with roll formed aluminum front panel and machined bottom finial. Panel fastened to acrylic diffuser with visible black hardware.
  3. MOUNTING: Fixture mounts to a standard octagonal junction box.
  4. ETL listed to UL standards for dry and damp locations
  5. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.

Other Milan Fixtures

Milan Pendant

Milan Pendant
Milan Ceiling

Milan Ceiling

View All Milan Fixtures
