Manning Lighting
LB-158-PT(LTM)-S36-35-D0-CON-120-WH
LB-158-PT(LTM)-S36-35-D0-CON-120-WH Hover to Zoom
LB-158-PT(LTM)-S36-35-D0-CON-120-WH — download hi-res image

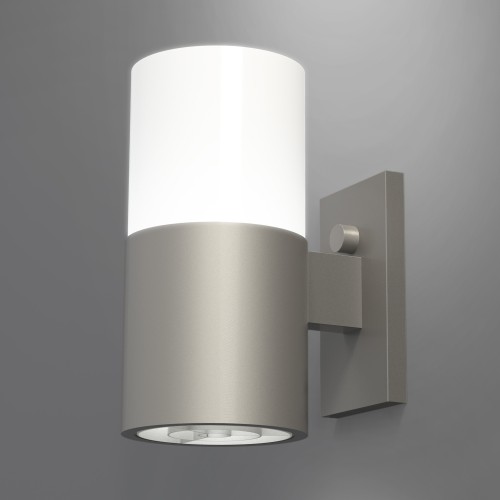

Omega Sconce

Tags: retro, classic, cylinder, LED

The Omega sconce matches the look of the pendant with an arm mounted cylindrical diffuser with a brushed aluminum or painted bottom accent.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LB-158

W: 6" x H: 12.5" Ext: 9"

LED

  • C38
    • Lumens: 3118 (delivered)
    • Wattage: 38
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 2N60 (2) 60 watt incandescent

Finish Codes:
Housing & Trim: BA or PT



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



Opal White Acrylic (WH)

Opal White Acrylic (WH)

  1. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  2. LED option includes bottom white acrylic diffuser.
  3. HOUSING: Consists of a solid spun aluminum cylinder housing with a white acrylic cylinder diffuser.
  4. MOUNTING: Fixture mounts to a standard octagonal junction box.
  5. ETL listed to UL standards for dry and damp locations
  6. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
