Manning Lighting H.O. Sconce HO-740, HO-742, HO-744

H.O. Sconce

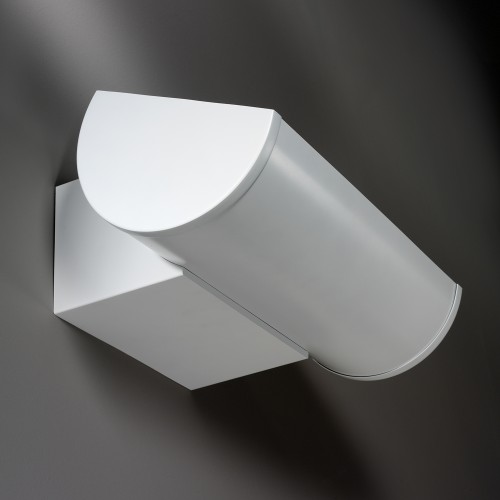

The H.O. sconce family is built around a highly efficient specular aluminum reflector for LED, compact fluorescent, quartz halogen, and metal halide lamps, Several housing shapes available.

Fixtures

HO-740

W: 17.5" x H: 7.5" Ext: 10.75"

LED

S16
- Lumens: 995 (delivered)
- Wattage: 16
CCT: 27K, 30K, 35K, 40K
CRI: >80
L70 @ 50,000 hrs.
Dimming options
- D0:0-10v
- D1:Triac (Leading Edge)*
- D2:ELV (Trailing Edge)

Downloads

Photos for download

HO-742

W: 26" x H: 7.5" Ext: 10.75"

LED

S32
- Lumens: 3440 (initial)
- Wattage: 32
CCT: 27K, 30K, 35K, 40K
CRI: >80
L70 @ 50,000 hrs.
Dimming options
- D0:0-10v
- D1:Triac (Leading Edge)*
- D2:ELV (Trailing Edge)

HO-744

W: 30" x H: 7.5" Ext: 10.75"

LED

S64
- Lumens: 6880 (initial)
- Wattage: 64
CCT: 27K, 30K, 35K, 40K
CRI: >80
L70 @ 50,000 hrs.
Dimming options
- D0:0-10v
- D1:Triac (Leading Edge)*
- D2:ELV (Trailing Edge)

Finishes

Finish Codes:
PT

Standard Painted Finishes (PT)

Specify PT(XXX).

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Notes

FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
HOUSING: Consists of an adjustable fabricated aluminum reflector housing and fabricated aluminum wall mounting plate.
MOUNTING: Fixture mounts to a standard octagonal junction box.
*Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
