Manning Lighting
The LED retrofit module snaps into the mounting clips designed to hold the incandescent PAR lamp.

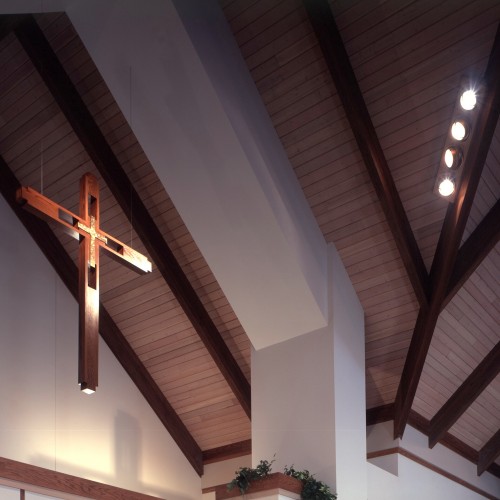

The LED retrofit delivers warm comfortable illumination where you need it.
The LED retrofit module snaps into the mounting clips designed to hold the incandescent PAR lamp. Hover to Zoom
The LED retrofit module snaps into the mounting clips designed to hold the incandescent PAR lamp. — download hi-res image
The LED retrofit delivers warm comfortable illumination where you need it. Hover to Zoom
The LED retrofit delivers warm comfortable illumination where you need it. — download hi-res image

LED retrofit for Spatialite

Tags: spotlight, floodlight, adjustable, LED, new

Manning Lightings spotlights (Spatialites) have been the go-to fixture for lighting altars, pulpits, artwork, religious symbols, and more for decades. Now they can be upgraded with an LED module specifically designed for them. Upgrading to LED has many benefits, including energy efficiency and long life. The LED upgrade kit is easy to install. The module simply snaps into the existing clips designed to hold the PAR lamp(s). UL listed for retrofit into existing non-recessed Manning GC, GS, and GCQ series fixtures. Available for Manning -x64 (Par56 and Par64 lamp) and -x46 (Par 46 lamp) models.

Spec Sheet (PDF) Find a Rep Contact Us

LED retrofit for Spatialite (PDF)

Fixtures

GCR-046

W: 8" x H: 8" x L: 9.5"

LED

  • G35R LED replacement Par46 or Par38
    • Lumens: 3657 (delivered)
    • Wattage: 35
  • Downlight Optic Options
    • B11 - 11-deg. beam reflector
    • B30 - 30-deg. beam reflector
    • B60 - 60-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

GCR-064

W: 10" x H: 10" x L: 12"

LED

  • G56R LED replacement Par56 or Par64
    • Lumens: 5970 (delivered)
    • Wattage: 56
  • Downlight Optic Options
    • B11 - 11-deg. beam reflector
    • B30 - 30-deg. beam reflector
    • B60 - 60-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  1. LED retrofit consists of LED module with integral driver, heat sink, and optical reflector for replacement of Par64, Par56, or Par46 lamps in existing Manning non-recessed GC, GS, and GCQ series fixtures.
  2. 3000K CCT and 30-degree beam reflector are standard.
  3. Each retrofit wire terminates in existing junction box on multi-lamp housings.
  4. Retrofit assembly snaps into lamp spring clips in existing fixture.
  5. ETL listed to UL standards for new or retrofit fixtures.
  6. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
