Fleur ADA Sconce

Tags: value, LED

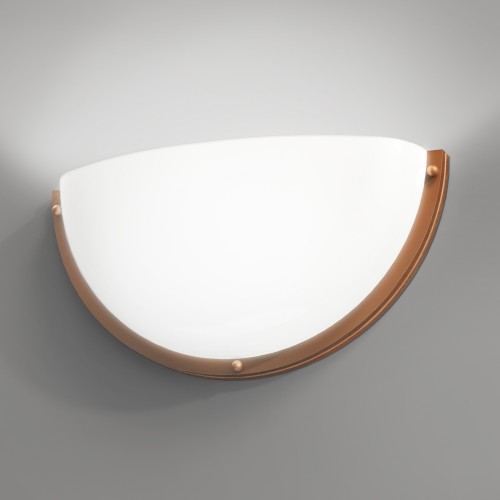

A shallow acrylic bowl with an aluminum or brass trim ring along the outer edge gives the Fleur ADA sconce a clean, contemporary appearance. Acrylic diffuser is available in white opal or faux alabaster varieties.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

DS-101

W: 14" x H: 7" Ext: 4"

LED

  • S8
    • Lumens: 1193 (initial)
    • Wattage: 8
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
  • 1NT60 (1) 60 watt T-10 incandescent
Finish Codes:
BA or PT or PB



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

Polished Brass (PB)

Polished Brass (PB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or FX



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Faux Alabaster Acrylic (FX)

Faux Alabaster Acrylic (FX)
  1. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  2. HOUSING: Consists of a thermoformed acrylic diffuser with machined aluminum trim.
  3. MOUNTING: Fixture mounts to a standard octagonal junction box.
  4. ETL listed to UL standards for dry and damp locations
  5. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
