Orbx

Tags: LED, Round, Ring

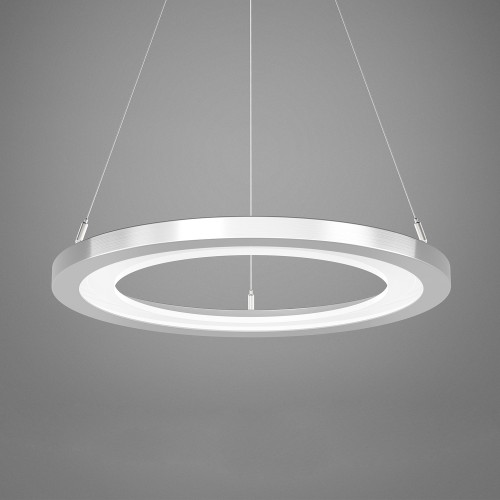

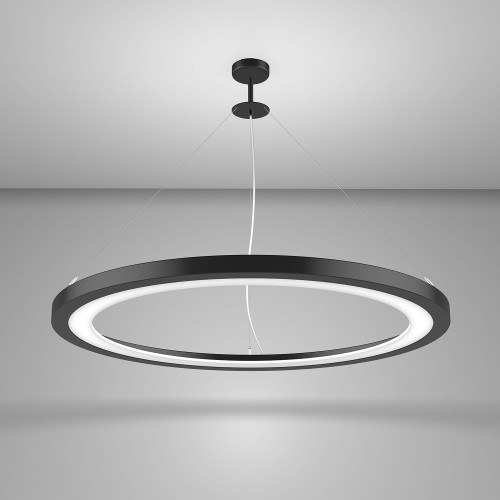

Orbx offers a new spin on the suspended ring pendant design. The inner satin white acrylic lens is edge lit by a hidden LED source for smooth, even uplight and downlight. The spun aluminum housing is available with a brushed or powder paint finish. Two LED color temperatures are available, and 0-10v dimming is standard.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

DP-770

Dia: 24" x H: 1.375"     OAH: 36''

LED

  • O30
    • Lumens: 1991 (delivered)
    • Wattage: 30
  • CCT: 30K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
  • DKC Disk ceiling driver canopy
  • PDT Driver housing suspended above fixture
  • REM Remote driver box

DP-774

Dia: 36" x H: 1.875"     OAH: 36''

LED

  • O45
    • Lumens: 3079 (delivered)
    • Wattage: 45
  • CCT: 30K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
  • DKC Disk ceiling driver canopy
  • PDT Driver housing suspended above fixture
  • REM Remote driver box

DP-776

Dia: 48" x H: 2"     OAH: 36''

LED

  • O62
    • Lumens: 4188 (delivered)
    • Wattage: 62
  • CCT: 30K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
  • DKC Disk ceiling driver canopy
  • PDT Driver housing suspended above fixture
  • REM Remote driver box
Finish Codes:
Housing: PT or BA



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: AWH



Satin Ice White (AWH)

Satin Ice White (AWH)
Aircraft Cable (CBL)
Aircraft Cable (CBL)
  1. OAH is standard unless specified.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  3. HOUSING: Spun aluminum housing and top cover.
  4. MOUNTING: Fixture mounts to a standard octagonal junction box.
  5. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
