Manning Lighting
DP-282-PB-B133-35-D0-120-WH
DP-282-PB-B133-35-D0-120-WH Hover to Zoom
DP-282-PB-B133-35-D0-120-WH — download hi-res image

Fleur Pendant

Tags: value, LED

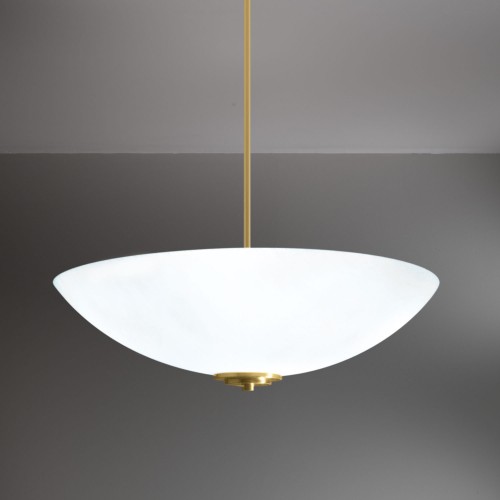

A simple, shallow acrylic bowl is the focus of the Fleur series. A spun aluminum or brass bottom finial accents a white opal or faux alabaster acrylic bowl diffuser.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

DP-280

Dia: 17.75" x H: 6"     OAH: 32''

LED

  • B32 Uplight + Downlight
    • Lumens: 1097 up/1097 down (delivered)
    • Wattage: 32
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 3N100 (3) 100 watt incandescent

DP-282

Dia: 25.75" x H: 7"     OAH: 45''

LED

  • B64 Uplight + Downlight
    • Lumens: 2545 up/1855 down (delivered)
    • Wattage: 64
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 4N100 (4) 100 watt incandescent

DP-286

Dia: 33.5" x H: 9.5"     OAH: 59''

LED

  • B145R Uplight + Downlight
    • Lumens: 8309 up/2782 down (delivered)
    • Wattage: 145
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 6N100 (6) 100 watt incandescent

Finish Codes:
BA or PT or PB



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

Polished Brass (PB)

Polished Brass (PB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or FX



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Faux Alabaster Acrylic (FX)

Faux Alabaster Acrylic (FX)

Single Stem (SIN)
Single Stem (SIN)
Satellite Rods (QAD)
Satellite Rods (QAD)
Angled Rods (TST)
Angled Rods (TST)

  1. OAH is standard unless specified.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  3. HOUSING: Consists of an acrylic bowl diffuser with spun aluminum or brass finial pan and optional "QAD" stem kit.
  4. MOUNTING: Fixture supplied with a painted canopy, 45-degree swivel ball and hanger for mounting to standard octagon junction box.
  5. ETL listed to UL standards for dry and damp locations
  6. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
