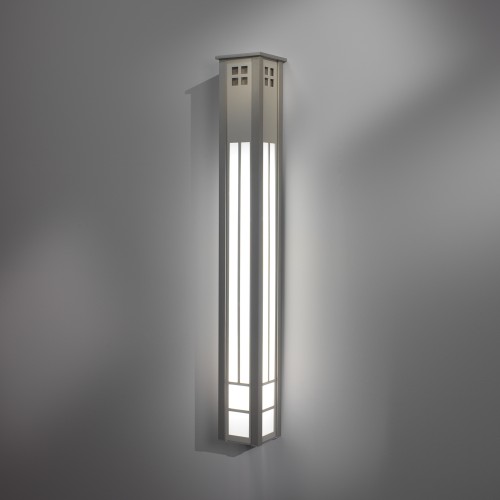

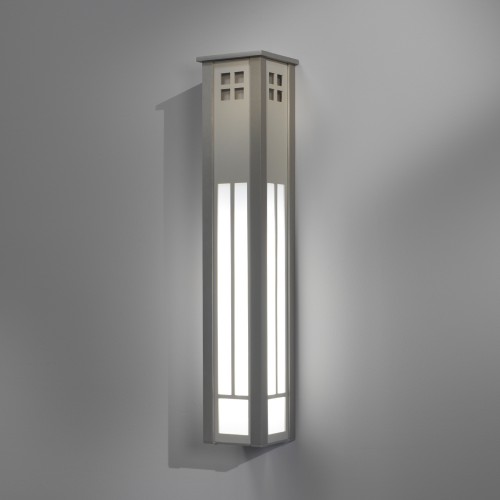

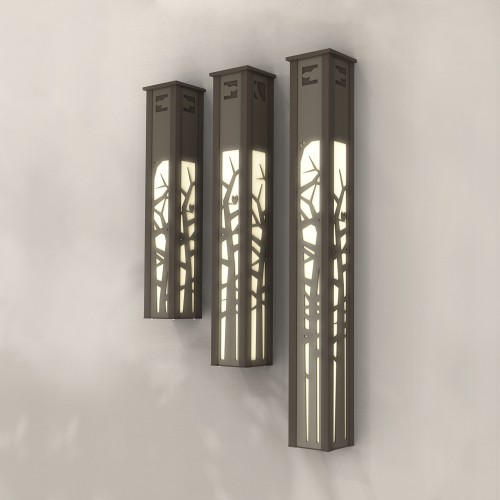

Manning Lighting G2 Exterior Sconce DE-254, DE-256, DE-258

G2 Exterior Sconce

This ultra slim exterior sconce is available in three sizes and can be customized by specifying any of six standard panel options (or create your own design). Robust extruded aluminum frame, LED components, and top and bottom covers are built to weather any storm with style.

Fixtures

DE-254

W: 4" x H: 21.3" Ext: 4"

LED

E11
- Lumens: 818 (initial)
- Wattage: 11
CCT: 27K, 30K, 35K, 40K
CRI: >80
L70 @ 50,000 hrs.
Dimming options
- D0:0-10v

DE-256

W: 4" x H: 25.2" Ext: 4"

LED

E17
- Lumens: 1226 (initial)
- Wattage: 17
CCT: 27K, 30K, 35K, 40K
CRI: >80
L70 @ 50,000 hrs.
Dimming options
- D0:0-10v

DE-258

W: 4" x H: 31.2" Ext: 4"

LED

E23
- Lumens: 1636 (initial)
- Wattage: 23
CCT: 27K, 30K, 35K, 40K
CRI: >80
L70 @ 50,000 hrs.
Dimming options
- D0:0-10v

Finishes

Finish Codes:
Trim: PT
Panel: PT or CU

Standard Painted Finishes (PT)

Specify PT(XXX).

Raw Copper (CU)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Material

Diffuser Codes: WH or FX

Opal White Acrylic (WH)

Faux Alabaster Acrylic (FX)

Panel Options

Notes

FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
HOUSING: Solid aluminum plate top and bottom end caps, extruded aluminum corner posts and laser-cut aluminum accent panel.
MOUNTING: Fixture mounts to a 2 x 4 switch box.
ETL listed to UL standards for wet locations.
Fluorescent ballasts rated to - 22-degree F
