Creekside Exterior Sconce

Tags: exterior, outdoor, LED

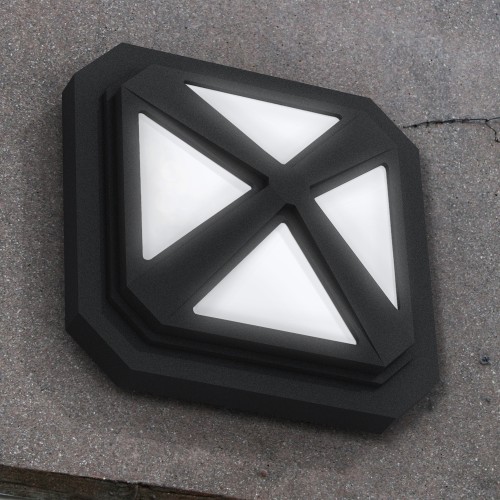

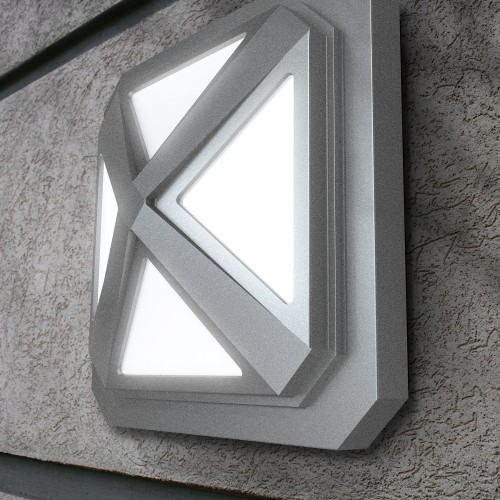

A cast aluminum housing and one-piece acrylic lens makes Creekside a stylish alternative to mundane exterior lighting. A variety of lamp options and durable powdercoat finishes available.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

DE-220

W: 11" x H: 13.5" Ext: 4"

LED

  • E7
    • Lumens: 401 (initial)
    • Wattage: 7
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v

DE-230

W: 15.5" x H: 20" Ext: 5.4"

LED

  • E11
    • Lumens: 818 (initial)
    • Wattage: 11
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
Finish Codes:
PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



Opal White Acrylic (WH)

Opal White Acrylic (WH)
  1. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  2. HOUSING: Consists of cast aluminum frame and one-piece impact resistant acrylic diffuser.
  3. MOUNTING: Fixture mounts to a standard octagonal junction box.
  4. ETL listed to UL standards for wet locations.
  5. Fluorescent ballasts rated to - 22-degree F
