Manning Lighting
DE-200-PP(SD)-BS-PP(SD)-E45-35-120-D0-WH-R1-TL
DE-200-PP(SD)-PP(SD)-E45-1QP75-35-120-D0-WH-R2
DE-200-PP(SD)-PP(SD)-E45-1QP75-35-120-D0-WH-R3
DE-200-PP(SD)-BS-PP(SD)-E45-35-120-D0-WH-R1-TL Hover to Zoom
DE-200-PP(SD)-BS-PP(SD)-E45-35-120-D0-WH-R1-TL — download hi-res image
DE-200-PP(SD)-PP(SD)-E45-1QP75-35-120-D0-WH-R2 Hover to Zoom
DE-200-PP(SD)-PP(SD)-E45-1QP75-35-120-D0-WH-R2 — download hi-res image
DE-200-PP(SD)-PP(SD)-E45-1QP75-35-120-D0-WH-R3
DE-200-PP(SD)-PP(SD)-E45-1QP75-35-120-D0-WH-R3 — download image

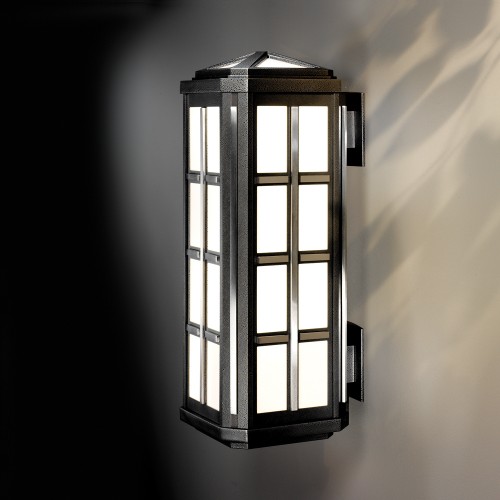

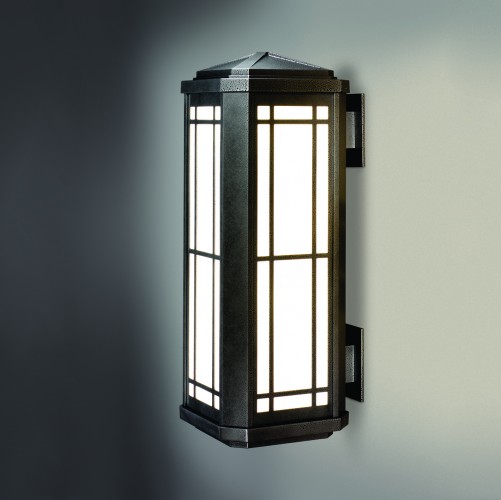

Riverside Square Bracket Mount Exterior Sconce

Tags: exterior, outdoor, customize, large scale, strong, arts and crafts, panels, facade, egress, LED

These Riverside exterior sconces extend from the wall on sturdy extruded arms. Six panel design options are standard, and custom panels are also available. Cast top and bottom and extruded frame add to the robust construction. White bottom lens standard. Also available mounted on an angle (DE-210 & 211).

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

DE-200

W: 11" x H: 30" Ext: 13.5"

LED

  • E45
    • Lumens: 3272 (initial)
    • Wattage: 45
  • E45 / 1QP75
    • Lumens: 3272 (initial)
    • Wattage: 45
    (1) 75 watt PAR30 halogen med. base
    • CCT: 27K, 30K, 35K, 40K
    • CRI: >80
    • L70 @ 50,000 hrs.
    • Dimming options
      • D0:0-10v

    • 3N60 (3) 60 watt incandescent

    • PC Photo Cell
    • TAL Top Acrylic Lens

    DE-201

    W: 15.5" x H: 45" Ext: 18.75"

    LED

    • E67
      • Lumens: 4904 (initial)
      • Wattage: 67
    • E67 / 1QP120
      • Lumens: 4904 (initial)
      • Wattage: 67
      (1) 120 watt PAR 38 quartz halogen
      • CCT: 27K, 30K, 35K, 40K
      • CRI: >80
      • L70 @ 50,000 hrs.
      • Dimming options
        • D0:0-10v

      • 4N60 (4) 60 watt incandescent

      • PC Photo Cell
      • TAL Top Acrylic Lens

      Finish Codes:
      Frame: PT
      Panels: PT or CU
      Optional Bar Trim on R1 Panel: NA or BS or PP or PS



      Standard Painted Finishes (PT)

      Specify PT(XXX).

      White (WHT)
      Warm Grey (WMG)
      Cool Grey (CLG)
      Black (BLK)
      Light Gold (LGD)
      Medium Gold (MGD)
      Light Titanium (LTM)
      Medium Titanium (MTM)
      Light Silver (LSV)
      Medium Silver (MSV)
      Deep Silver (DSV)
      Light Bronze (LBZ)
      Medium Bronze (MBZ)
      Deep Bronze (DBZ)
      Medium Copper (MCP)
      Deep Copper (DCP)
      Cream (CRM)
      Textured Silver (TSV)
      Textured Nickel (TNK)
      Deep Gold (DGD)
      Bright Copper (BCP)
      Aged Copper (ACP)
      Textured Copper (TCP)
      Light Copper (LCP)
      Silverado (SD)
      Bronze Crater (BC)
      Oil Rubbed Bronze (ORB)

      Raw Copper (CU)

      Raw Copper (CU)

      No bar trim on R1 panel (NA)

      No bar trim on R1 panel (NA)

      Brushed Stainless Steel (BS)

      Brushed Stainless Steel (BS)

      Powder coat paint (PP)

      Specify PP(XXX).

      Sky White (WH)
      Satin Black (BK)
      Silverado (SD)
      Sparkle Silver (SR)
      Bronze Crater (BC)
      Jade Crater (JC)
      Cream (CRM)
      Textured Silver (TSV)
      Textured Nickel (TNK)
      Deep Gold (DGD)
      Bright Copper (BCP)
      Aged Copper (ACP)
      Textured Copper (TCP)
      Light Copper (LCP)
      White (WHT)
      Warm Grey (WMG)
      Cool Grey (CLG)
      Black (BLK)
      Light Gold (LGD)
      Medium Gold (MGD)
      Light Titanium (LTM)
      Medium Titanium (MTM)
      Light Silver (LSV)
      Medium Silver (MSV)
      Deep Silver (DSV)
      Light Bronze (LBZ)
      Medium Bronze (MBZ)
      Deep Bronze (DBZ)
      Medium Copper (MCP)
      Deep Copper (DCP)

      Polished stainless steel (PS)

      Polished stainless steel (PS)

      NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

      Diffuser Codes: WH or FX



      Opal White Acrylic (WH)

      Opal White Acrylic (WH)

      Faux Alabaster Acrylic (FX)

      Faux Alabaster Acrylic (FX)

      Industry Panel Riverside (R1)
      Industry Panel Riverside (R1)
      Mission Panel Riverside (R2)
      Mission Panel Riverside (R2)
      Frame Panel Riverside (R3)
      Frame Panel Riverside (R3)
      Welsh Panel Riverside (R4)
      Welsh Panel Riverside (R4)
      Gothic Panel Riverside (R5)
      Gothic Panel Riverside (R5)
      Nature Panel Riverside (R6)
      Nature Panel Riverside (R6)

      1. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
      2. HOUSING: Consists of heavy gauge extruded aluminum corner posts, solid cast aluminum end caps and laser-cut aluminum trim panels.
      3. MOUNTING: Fixture supplied with mounting template, gasketed mounting plate, and visible hardware. Fixture mounts to 1/4-20 studs attached to structural blocking provided by installing electrician. Standard octagonal junction box required (preferred box placement at bottom arm).
      4. ETL listed to UL standards for wet locations.
      5. Fluorescent and metal halide ballasts rated to - 22-degree F
      6. All MH lamp options include integral electronic ballast.
