Discoh Ceiling (bowl)

Tags: LED

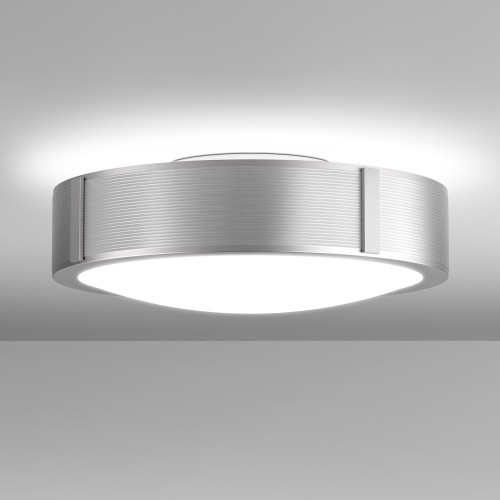

The housing of the Discoh series is clad in your choice of textured metal trim options for a modern, dynamic appearance. Different finish options, painted or brushed aluminum for the housing and stainless steel or painted for the textured metal, add even more visual interest. Two LED configurations give you efficiency and performance options.. A subtle bowl shaped white acrylic diffuser is at bottom.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

DC-891

Dia: 23.5" x H: 7.25"

LED

  • C26
    • Lumens: 2178 (delivered)
    • Wattage: 26
  • C38
    • Lumens: 3118 (delivered)
    • Wattage: 38
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
Finish Codes:
Housing: PT or BA
Textured metal accent trim: PT or SS



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Stainless Steel (SS)

Stainless Steel (SS)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



Opal White Acrylic (WH)

Opal White Acrylic (WH)
Dot Textured Metal (DOT)
Dot Textured Metal (DOT)
Horizontal Rib Textured Metal (HRB)
Horizontal Rib Textured Metal (HRB)
Vertical Rib Textured Metal (VRB)
Vertical Rib Textured Metal (VRB)
