Nuville Ceiling

Tags: classic, best seller, LED

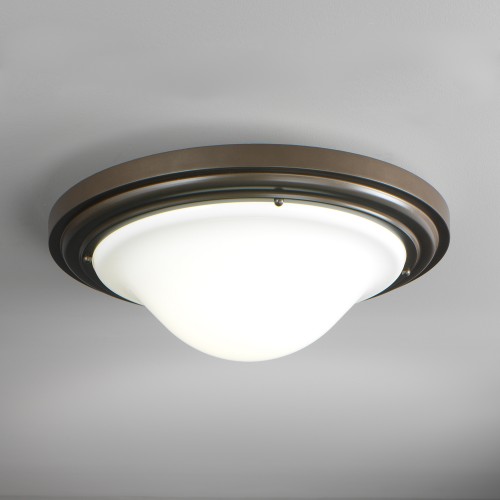

Spun aluminum or solid brass trim ring holds a unique bell-shaped acrylic diffuser. LED, incandescent or compact fluorescent sources provide a range of performance options for any need and budget.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

DC-850

Dia: 23" x H: 8.75"

LED

  • C26
    • Lumens: 2178 (delivered)
    • Wattage: 26
  • C38
    • Lumens: 3118 (delivered)
    • Wattage: 38
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
  • 2N60 (2) 60 watt incandescent
Finish Codes:
BA or PT or PB or SAB or FAB



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

Polished Brass (PB)

Polished Brass (PB)

Solid Antique Brass (SAB)

Solid Antique Brass (SAB)

Faux Antique Brass (FAB)

Faux Antique Brass (FAB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or FX



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Faux Alabaster Acrylic (FX)

Faux Alabaster Acrylic (FX)
  1. Specify three digit color suffix with "PT" finish option.
  2. HOUSING: Consists of a spun aluminum or brass trim ring, acrylic bell diffuser and painted white canopy.
  3. MOUNTING: Fixture mounts to a standard octagonal junction box.
  4. ETL listed to UL standards for dry and damp locations
  5. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
