Manning Lighting
DC-660-PT(LBZ)-C26-35-D0-120-WH
DC-660-PT(LBZ)-C26-35-D0-120-WH Hover to Zoom
DC-660-PT(LBZ)-C26-35-D0-120-WH — download hi-res image

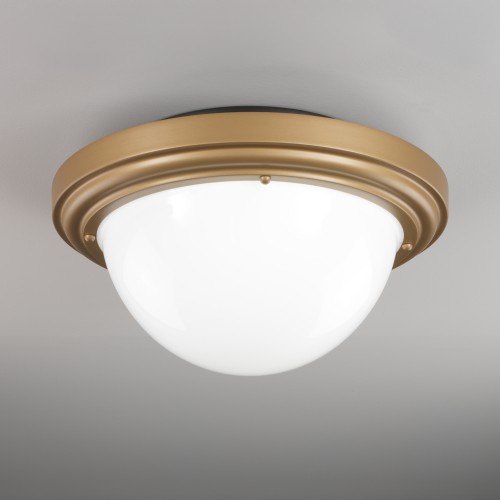

Tradition Ceiling

Tags: classic, value, best seller, LED

The Tradition ceiling mount features a spun trim ring available in brushed aluminum, painted finish, or solid polished brass. Lamp options include LED, incandescent and compact fluorescent. Closed top minimizes debris inside the bowl.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

DC-660

Dia: 18.25" x H: 9.25"

LED

  • C26
    • Lumens: 2178 (delivered)
    • Wattage: 26
  • C38
    • Lumens: 3118 (delivered)
    • Wattage: 38
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 2N60 (2) 60 watt incandescent

DC-662

Dia: 23" x H: 11.5"

LED

  • C26
    • Lumens: 2178 (delivered)
    • Wattage: 26
  • C38
    • Lumens: 3118 (delivered)
    • Wattage: 38
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 3N60 (3) 60 watt incandescent

Finish Codes:
BA or PT or PB or SAB or FAB



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

Polished Brass (PB)

Polished Brass (PB)

Solid Antique Brass (SAB)

Solid Antique Brass (SAB)

Faux Antique Brass (FAB)

Faux Antique Brass (FAB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or FX



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Faux Alabaster Acrylic (FX)

Faux Alabaster Acrylic (FX)

  1. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  2. HOUSING: Consists of spun aluminum or brass trim ring with an acrylic bowl diffuser.
  3. MOUNTING: Fixture mounts to a standard octagonal junction box.
  4. ETL listed to UL standards for dry and damp locations
  5. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
