Manning Lighting
CPI-346-16-PT(TSV)-3N60-CON-120-WH
CPI-346-16-PT(TSV)-3N60-CON-120-WH Hover to Zoom
CPI-346-16-PT(TSV)-3N60-CON-120-WH — download hi-res image

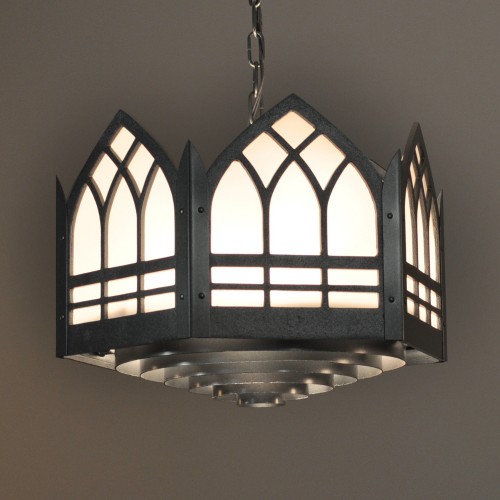

New England Gothic Pendant (CPI series)

Tags: traditional, LED

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

CPI-346-13

Dia: 13.5" x H: 15.75"     OAH: 54''

LED

  • P26 (1) 26-watt LED array
    • Lumens: 2835 (initial)
    • Wattage: 26
  • P38 (1) 38-watt LED array
    • Lumens: 4092 (initial)
    • Wattage: 38
  • Downlight Optic Options
    • CON - Concentric Ring Louver (approx. 50-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 3N60 (3) 60 watt incandescent

CPI-346-16

Dia: 16.5" x H: 19.75"     OAH: 57''

LED

  • P26 (1) 26-watt LED array
    • Lumens: 2835 (initial)
    • Wattage: 26
  • P38 (1) 38-watt LED array
    • Lumens: 4092 (initial)
    • Wattage: 38
  • Downlight Optic Options
    • CON - Concentric Ring Louver (approx. 50-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 3N60 (3) 60 watt incandescent

Finish Codes:
PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or IV or FX



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Ivory acrylic (IV)

Ivory acrylic (IV)

Faux Alabaster Acrylic (FX)

Faux Alabaster Acrylic (FX)

  1. LED option replaces bottom louver with white acrylic diffuser.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  3. OVERALL HEIGHT: Standard OAH includes fixture height plus 6' main chain to ceiling.
  4. HOUSING: Consists of solid aluminum laser cut panels with fabricated steel corner trim posts.
  5. ETL listed to UL standards for dry and damp locations
  6. MOUNTING: Fixture mounts to a standard octagonal junction box.
  7. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
