Tradition Chandelier

Tags: classic, best seller, LED, large scale

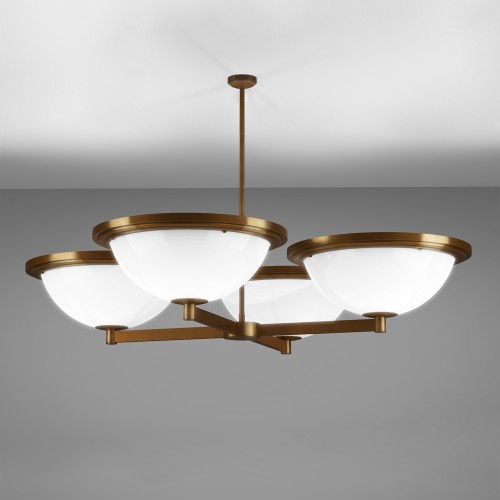

The two- or four-bowl Tradition chandelier is designed for illuminating large spaces. The spun trim ring around each bowl, extruded arm, and center hub are available in brushed aluminum, painted finish, or solid polished brass. Incandescent or compact fluorescent sources provide a range of performance options for any need and budget

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

CP-290

Dia: 72" x H: 13"     OAH: 40''

LED

  • CH130 Two Bowls - Up & Downlight
    • Lumens: 2545 up/1855 dn per bowl (delivered)
    • Wattage: 130
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
  • 6N100 (6) 100 watt incandescent

CP-291

Dia: 72" x H: 13"     OAH: 40''

LED

  • CH260 Four Bowls - Up & Downlight
    • Lumens: 2545 up/1855 dn per bowl (delivered)
    • Wattage: 260
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
  • 12N100 (12) 100 watt incandescent

CP-292

Dia: 84" x H: 14"     OAH: 55''

LED

  • CH256 Two Bowls - Up & Downlight
    • Lumens: 5091 up/3719 dn per bowl (delivered)
    • Wattage: 256
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
  • 8N100 (8) 100 watt incandescent

CP-293

Dia: 84" x H: 14"     OAH: 55''

LED

  • CH512 Four Bowls - Up & Downlight
    • Lumens: 5091 up/3710 dn per bowl (delivered)
    • Wattage: 512
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
  • 16N100 (16) 100 watt incandescent
Finish Codes:
BA or PT or PB or SAB or FAB



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

Polished Brass (PB)

Polished Brass (PB)

Solid Antique Brass (SAB)

Solid Antique Brass (SAB)

Faux Antique Brass (FAB)

Faux Antique Brass (FAB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or FX



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Faux Alabaster Acrylic (FX)

Faux Alabaster Acrylic (FX)
Single Stem (SIN)
Single Stem (SIN)
Satellite Rods (QAD)
Satellite Rods (QAD)
  1. OAH is standard unless specified.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  3. HOUSING: Consists of spun aluminum or brass trim rings with an acrylic bowl diffuser and choice of stem kit.
  4. MOUNTING: CP-290 & 292: Fixture specified with brushed or painted finish supplied with swivel hanger for mounting to standard octagon junction box. Fixture specified with brass material supplied with swivel hanger requiring attachment to structure using a ceiling fan rated electrical box. CP-291 & CP-293: Fixture supplied with a painted canopy, 60-degree swivel ball and hanger. Structural support is required for this heavy fixture. 2 x 4 blocking or 1/2" IP stud extending 1/2" below finished ceiling through center of octagonal junction box is required.
  5. ETL listed to UL standards for dry and damp locations
  6. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
