Manning Lighting
CP-253-PT(MGD)-CH304-35-D0-CON-120-WH
CP-253-PT(MGD)-CH304-35-D0-CON-120-WH Hover to Zoom
CP-253-PT(MGD)-CH304-35-D0-CON-120-WH — download hi-res image

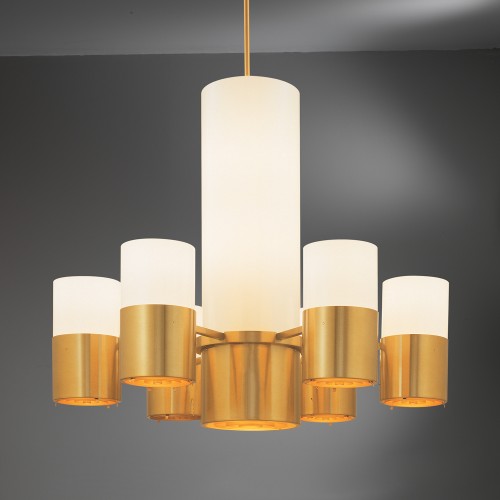

Omega Chandelier

Tags: retro, classic, lots o' light, large scale, cylinder, LED

The last word in powerful lighting solutions. The Omega chandelier consists of a center cylinder complemented by six outer downlights. Choose a brushed aluminum or painted bottom accent finish. Bottom LED reflectors or concentric ring louvers reduce glare.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

CP-253

Dia: 36" x H: 34"     OAH: 72''

LED

  • CH304 Body + Downlights
    • Lumens: 35488 (initial)
    • Wattage: 304
  • Downlight Optic Options
    • B60 - 60-deg. beam reflector
    • B90 - 90-deg. beam reflector
    • CON - Concentric Ring Louver (approx. 50-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 3N100 / 1R500 / 6R300 (3) 100 watt incandescent (1) 500 watt R40 med. base (6) 300 watt R40 med. base

CP-255

Dia: 48" x H: 42.5"     OAH: 106''

LED

  • CH325 Body + Downlights
    • Lumens: 39232 (initial)
    • Wattage: 325
  • Downlight Optic Options
    • B60 - 60-deg. beam reflector
    • B90 - 90-deg. beam reflector
    • CON - Concentric Ring Louver (approx. 50-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 6N100 / 1R500 / 6N100 / 6R300 (6) 100 watt incandescent (1) 500 watt R40 med. base (6) 100 watt incandescent (6) 300 watt R40 med. base

Finish Codes:
Housing & Trim: BA or PT



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



White Acrylic (WH)

White Acrylic (WH)

  1. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  2. OAH is standard unless specified.
  3. HOUSING: Solid spun aluminum cylinder housings with white acrylic cylinder diffusers supported by a cast aluminum center hub.
  4. MOUNTING: Fixture supplied with painted canopy, 60-degree swivel ball and heavy cast aluminum hanger for mounting to structural blocking by others.
  5. CIRCUITS: Two or Three Circuit wiring: Down lamp on circuit #1, Center lamps on circuit #2, Outside lamps on circuit #3 (incand. only).
  6. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
  7. ETL listed to UL standards for dry and damp locations

Other Omega Fixtures

Omega Pendant

Omega Pendant
Omega Sconce

Omega Sconce
Omega Ceiling

Omega Ceiling

View All Omega Fixtures
