Manning Lighting
CP-124-PT(BLK)-CH122-35-UNV-WH
CP-128-PT(BLK)-CH223-35-UNV-WH
CP-124-PT(BLK)-CH122-35-UNV-WH Hover to Zoom
CP-124-PT(BLK)-CH122-35-UNV-WH — download hi-res image
CP-128-PT(BLK)-CH223-35-UNV-WH Hover to Zoom
CP-128-PT(BLK)-CH223-35-UNV-WH — download hi-res image

Rosy Glo

Tags: new, Round, Ring

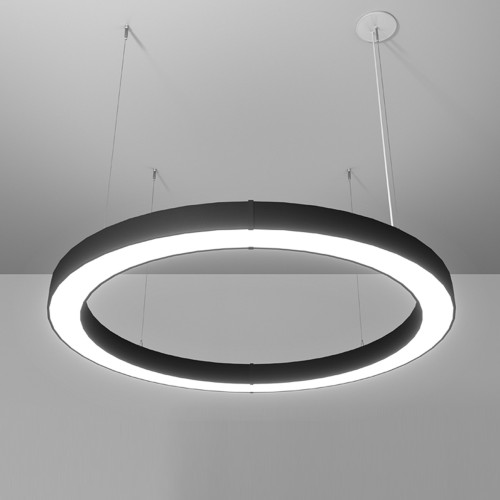

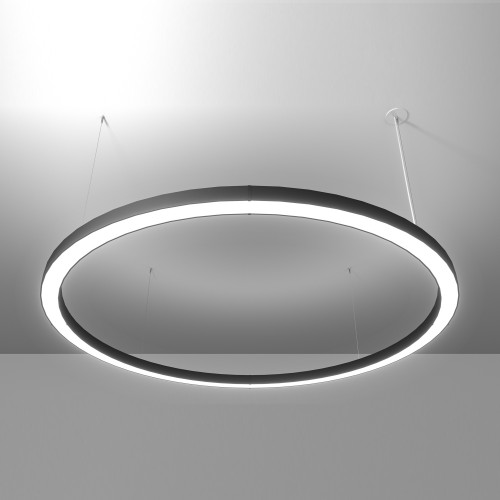

An elegant rolled aluminum extrusion featuring an illuminated top or bottom lens (or both) is the essence of Rosy GLO. Standard sizes from two-feet to eight-feet in diameter are available as standard, but Rosy GLO is flexible! Just contact us if you need a larger or smaller diameter, or even a different shape. You can also add some color with the RGBW option and remote DMX driver. Standard suspension is aircraft cable/power cord.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

CP-122

Dia: 24" W: 3" x H: 3"     OAH: 24"

LED

  • GCH28 Downlight
    • Lumens: 1425 delivered
    • Wattage: 28
  • GCH57 Uplight + Downlight
    • Lumens: 3700 delivered
    • Wattage: 57
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

CP-123

Dia: 36" W: 3" x H: 3"     OAH: 36"

LED

  • GCH42 Downlight
    • Lumens: 2150 delivered
    • Wattage: 42
  • GCH85 Uplight + Downlight
    • Lumens: 5575 delivered
    • Wattage: 85
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

CP-124

Dia: 48" W: 4" x H: 3"     OAH: 48"

LED

  • GCH56 Downlight
    • Lumens: 2850 delivered
    • Wattage: 56
  • GCH112 Uplight + Downlight
    • Lumens: 7425 delivered
    • Wattage: 112
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

CP-126

Dia: 72" W: 4" x H: 3"     OAH: 72"

LED

  • GCH84 Downlight
    • Lumens: 4300 delivered
    • Wattage: 84
  • GCH167 Uplight + Downlight
    • Lumens: 11175 delivered
    • Wattage: 167
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

CP-128

Dia: 96" W: 4" x H: 3"     OAH: 96"

LED

  • GCH111 Downlight
    • Lumens: 5725 delivered
    • Wattage: 111
  • GCH222 Uplight + Downlight
    • Lumens: 14900 delivered
    • Wattage: 222
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

Finish Codes:
Housing: PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Aircraft Cable (CBL)
Aircraft Cable (CBL)

  1. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  2. HOUSING: Rolled aluminum extrusion. LED Drivers integral for static color models, remote DMX driver for RGBW option.
  3. MOUNTING: Field-adjustable aircraft cable suspension to separate mouting locations and power cord to painted canopy. OAH is standard unless specified.
  4. CIRCUITS: Two-circuit wiring for uplight/downlight standard.
  5. DIFFUSER: Bottom white 1/8" thick extruded acrylic lens. Top: Clear 1/8" thick extruded acrylic lens.
  6. CP-126 and CP-128 are shipped in segments and require some assembly.
  7. ETL listed to UL standards for dry and damp locations.
