Rosy

Tags: new, LED, large scale, Round, Ring

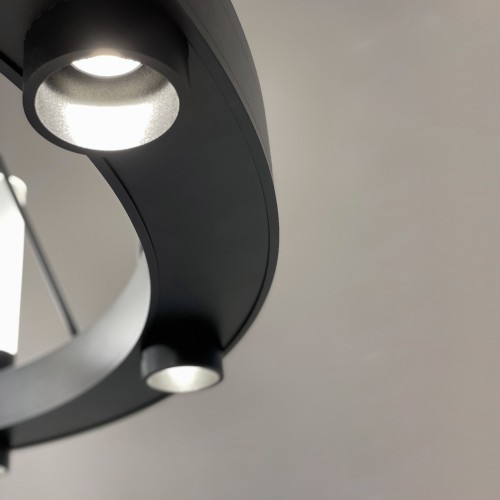

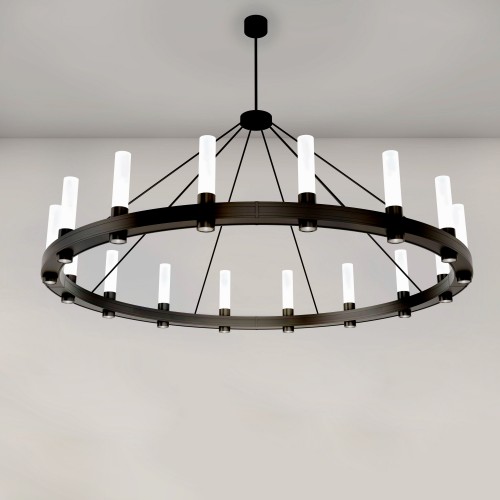

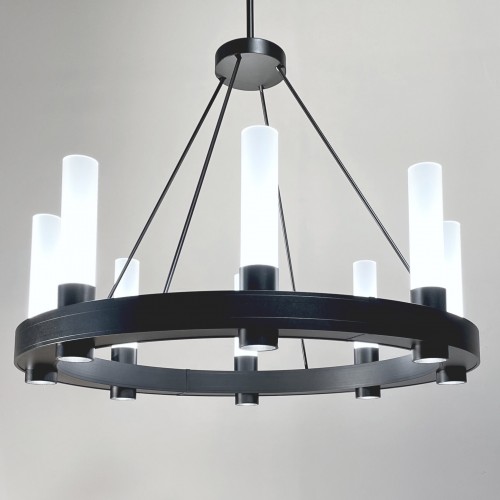

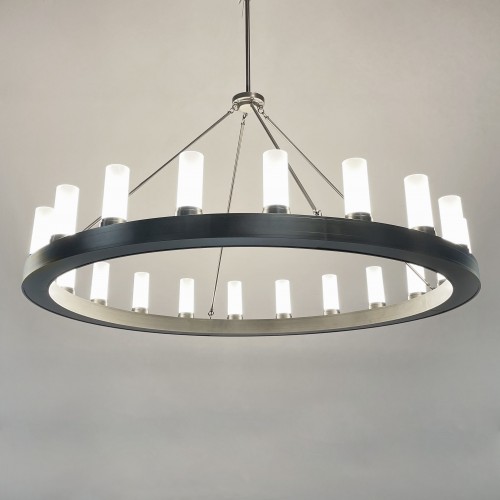

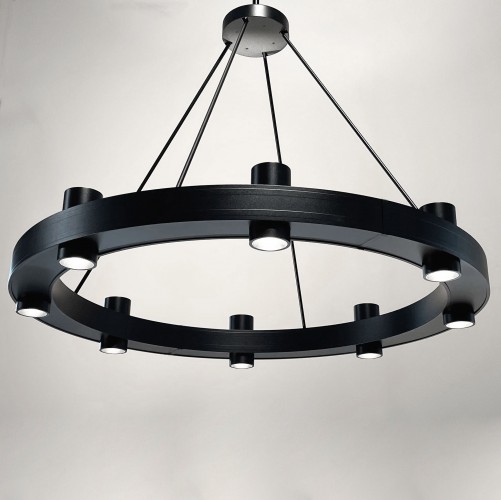

Rosy is an elegant ring pendant with clean lines, great performance, and plenty of options. Sizes from two- to eight-feet diameter are standard, and the flexible extruded aluminum construction allows custom sizes and shapes only limited by your imagination. Highly efficient seven-watt LEDs provide ample ambient and uplight, as well as optional downlights recessed into a machined black bezel to minimize glare. The dimmable constant current drivers are concealed in the ring structure yet are easily accessible for maintenance. Rosy is supported by a single stem mounting with lower satellite support rods (number depends on size specified).

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

CP-102

Dia: 24" W: 3" x H: 24"     OAH: 50"

LED

  • CH28 (4) Uplights
    • Lumens: 2300 up delivered
    • Wattage: 28
  • DCH28 (4) Downlights
    • Lumens: 2300 down delivered
    • Wattage: 28
  • CH56 (4) Uplights + (4) Downlights
    • Lumens: 2300 up/2300 down delivered
    • Wattage: 56
  • Downlight Optic Options
    • B25 - 25-deg. beam reflector
    • B35 - 35-deg. beam reflector
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

CP-103

Dia: 36" W: 3" x H: 27.75"     OAH: 66"

LED

  • CH42 (6) Uplights
    • Lumens: 3500 up delivered
    • Wattage: 42
  • DCH42 (6) Downlights
    • Lumens: 3500 down delivered
    • Wattage: 42
  • CH84 (6) Uplights + (6) Downlights
    • Lumens: 3500 up/3500 down delivered
    • Wattage: 84
  • Downlight Optic Options
    • B25 - 25-deg. beam reflector
    • B35 - 35-deg. beam reflector
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

CP-104

Dia: 48" W: 4" x H: 37"     OAH: 87"

LED

  • CH55 (8) Uplights
    • Lumens: 4650 up delivered
    • Wattage: 55
  • DCH55 (8) Downlights
    • Lumens: 4650 down delivered
    • Wattage: 55
  • CH111 (8) Uplights + (8) Downlights
    • Lumens: 4650 up/4650 down delivered
    • Wattage: 111
  • Downlight Optic Options
    • B25 - 25-deg. beam reflector
    • B35 - 35-deg. beam reflector
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

CP-106

Dia: 72" W: 4" x H: 51"     OAH: 115"

LED

  • CH83 (12) Uplights
    • Lumens: 7000 up delivered
    • Wattage: 83
  • DCH83 (12) Downlights
    • Lumens: 7000 down delivered
    • Wattage: 83
  • CH165 (12) Uplights + (12) Downlights
    • Lumens: 7000 up/7000 down delivered
    • Wattage: 165
  • Downlight Optic Options
    • B25 - 25-deg. beam reflector
    • B35 - 35-deg. beam reflector
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

CP-108

Dia: 96" W: 4" x H: 61.75"     OAH: 126"

LED

  • CH110 (16) Uplights
    • Lumens: 9350 up delivered
    • Wattage: 110
  • DCH110 (16) Downlights
    • Lumens: 9350 down delivered
    • Wattage: 110
  • CH220 (16) Uplights + (16) Downlights
    • Lumens: 9350 up/9350 down delivered
    • Wattage: 220
  • Downlight Optic Options
    • B25 - 25-deg. beam reflector
    • B35 - 35-deg. beam reflector
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: 90
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
Finish Codes:
Housing: PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: ACL or NAD



Satin Ice acrylic (ACL)

Satin Ice acrylic (ACL)

No acrylic diffusers (NAD)

No acrylic diffusers (NAD)
Angled Rods (TST)
Angled Rods (TST)
  1. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
  2. OAH is standard unless specified.
  3. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  4. HOUSING: Rolled aluminum extrusions with top and bottom aluminum plates. LED Drivers integral.
  5. MOUNTING: CP-102 & -103 supplied with painted canopy, 45-degree swivel ball and hanger for mounting to standard octagon junction box.
  6. MOUNTING: CP-104,-106,-108 mount over standard electrical box and require structural blocking for additional support.
  7. CIRCUITS: Two-circuit wiring for uplight/downlight standard.
  8. CYLINDERS: 2" dia. x 13.5" HT on CP-102,-103 & 3" dia. x 13.5" H on CP-104,-106,-108
  9. ETL listed to UL standards for dry and damp locations
  10. CP-106 and CP-108 are shipped in segments and require some assembly.
  11. GLARE RATING: UGR<10 helps meet WELL building standards for controlled glare
