Column Rail Ceiling

Tags: bar stock, best seller, classic, LED

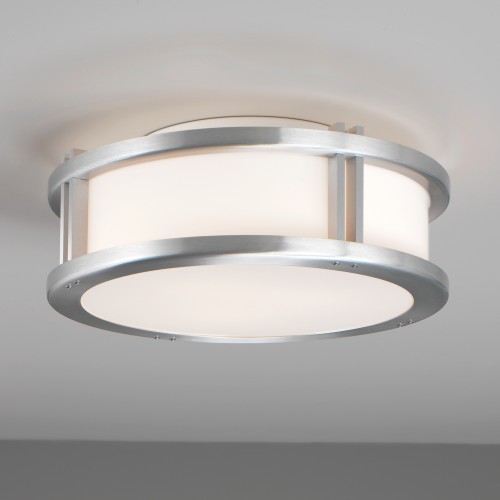

Ceiling mounted luminous single-piece opal acrylic diffuser complemented with horizontal spun aluminum rings on top and bottom and bar stock details. Open top with LED, incandescent, or circular fluorescent lamp options.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

CC-224

Dia: 17" x H: 6.5"

LED

  • C26
    • Lumens: 2178 (delivered)
    • Wattage: 26
  • C38
    • Lumens: 3118 (delivered)
    • Wattage: 38
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
  • 3N60 (3) 60 watt incandescent
Finish Codes:
Trim: BA or PB or PT



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Polished Brass (PB)

Polished Brass (PB)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



Opal White Acrylic (WH)

Opal White Acrylic (WH)
  1. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  2. HOUSING: Consists of spun aluminum or brass trim rings and machined aluminum or brass bar details over a white thermoformed acrylic bowl.
  3. MOUNTING: Fixture mounts to a standard octagonal junction box.
  4. ETL listed to UL standards for dry and damp locations
