Roman Ceiling

Tags: classic, bar stock, LED

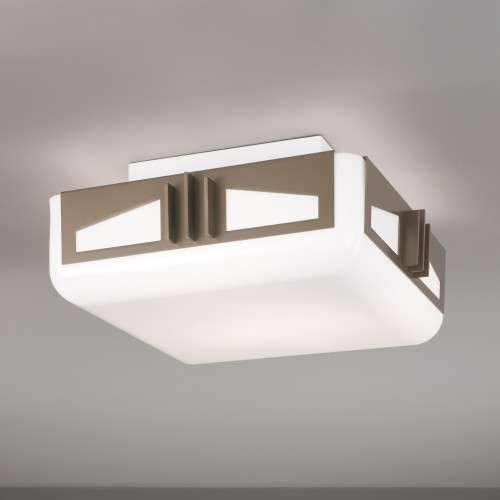

Solid brass or aluminum bars decorate the Roman ceiling mount fixture. A brushed aluminum or painted finish is available on the panels. One-piece white acrylic diffuser. Choose from LED, incandescent, or circular fluorescent lamp options.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

CC-071

W: 16.25" x H: 6.5" x L: 16.25"

LED

  • C26
    • Lumens: 2178 (delivered)
    • Wattage: 26
  • C38
    • Lumens: 3118 (delivered)
    • Wattage: 38
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
  • 3N60 (3) 60 watt incandescent
Finish Codes:
Panel & Trim: BA or PT or FAB
Bar Trim: BA or PT or FAB or BB



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

Faux Antique Brass (FAB)

Faux Antique Brass (FAB)

Brushed Solid Brass (BB)

Brushed Solid Brass (BB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



Opal White Acrylic (WH)

Opal White Acrylic (WH)
  1. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  2. HOUSING: Consists of white thermoformed acrylic with laser-cut accent panels and painted canopy.
  3. MOUNTING: Fixture mounts to a standard octagonal junction box.
  4. ETL listed to UL standards for dry and damp locations
  5. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
