Manning Lighting

B-719

Tags: Borden, new

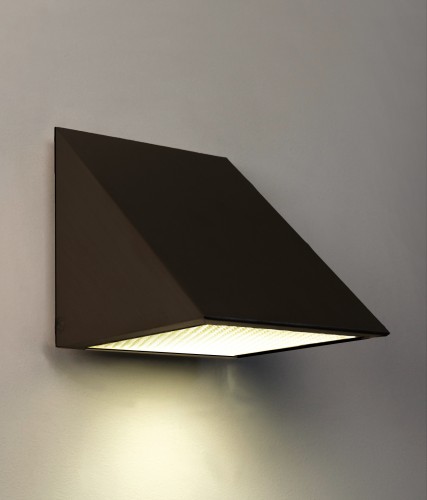

The B-719 wedge is the medium-sized in a family of three wedge sconce from the Borden Lighting collection. Equally at home in interior or exterior applications, the B-719's Features a formed aluminum housing and cast aluminum backplate to ensure a sturdy profile. Full cutoff and low glare also make it dark-sky friendly!

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

B-719

W: 6" x H: 6" Ext: 6.6"

LED

  • E13 Downlight
    • Lumens: 1550 (initial)
    • Wattage: 13
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

Finish Codes:
Housing: PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: CRA



Clear refractive acrylic lens (CRA)

Clear refractive acrylic lens (CRA)

  1. ETL listed to UL standards for dry, damp, or wet locations.
  2. HOUSING: Formed aluminum housing with cast aluminum backplate. High transmission clear refractive acrylic lens.
  3. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  4. DRIVER: Integral LED driver compatible with 0-10v, Triac, or ELV dimming.
  5. MOUNTING: Fixture for installation over standard octagonal junction box.
