Manning Lighting

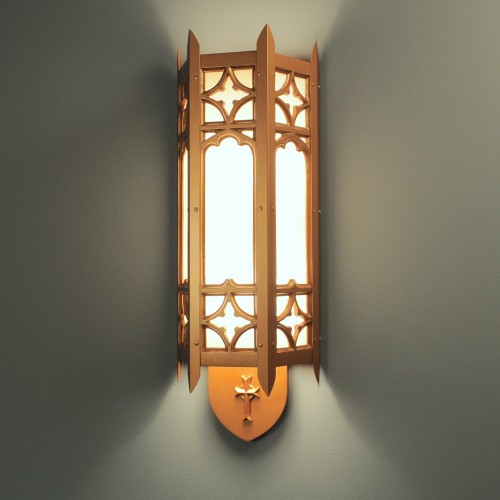

LBI-641-PT(MBZ)-S10-35-D0-120-WH

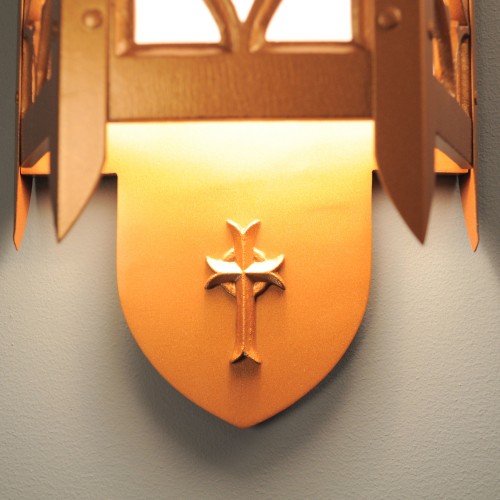

Detail View of LBI-641
LBI-641-PT(MBZ)-S10-35-D0-120-WH Hover to Zoom
LBI-641-PT(MBZ)-S10-35-D0-120-WH — download hi-res image
Detail View of LBI-641 Hover to Zoom
Detail View of LBI-641 — download hi-res image

Tudor Gothic Sconce

Tags: traditional, LED

Intricate cast aluminum panels lend this sconce a traditional Tudor gothic style. Choose from white or ivory acrylic panels. LED option includes bottom acrylic diffuser.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LBI-641

W: 8.25" x H: 22" Ext: 5"

LED

  • S7
    • Lumens: 612 (delivered)
    • Wattage: 7
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 2N60 (2) 60 watt incandescent

Finish Codes:
PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or IV or FX



White Acrylic (WH)

White Acrylic (WH)

Ivory acrylic (IV)

Ivory acrylic (IV)

Faux Alabaster Acrylic (FX)

Faux Alabaster Acrylic (FX)

  1. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  2. HOUSING: Consists of solid cast aluminum trim panels with fabricated steel corner trim posts.
  3. MOUNTING: Fixture mounts to a standard octagonal junction box.
  4. ETL listed to UL standards for dry and damp locations
  5. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.

Other Tudor Gothic Fixtures

Tudor Gothic Exterior Sconce

Tudor Gothic Exterior Sconce
Tudor Gothic Pendant (CPI-839 series)

Tudor Gothic Pendant (CPI-839 series)
Tudor Gothic Pendant

Tudor Gothic Pendant
Tudor Gothic Pendant (LPI- series)

Tudor Gothic Pendant (LPI- series)

View All Tudor Gothic Fixtures
