Manning Lighting

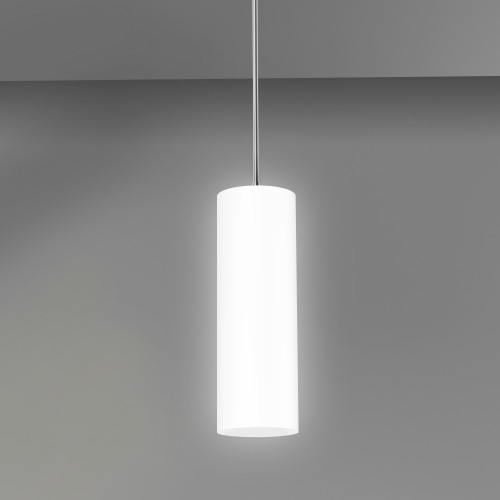

LP-572-08-PT(LSV)-P57-35-120-WH-REM
LP-572-08-PT(LSV)-P57-35-120-WH-REM Hover to Zoom
LP-572-08-PT(LSV)-P57-35-120-WH-REM — download hi-res image

StiltXL

Tags: new, LED

The StiltXL series is sleek, clean, and unabshedly minimalist, yet still pack a substantial lumen package. Choose an eight-, ten- or 12-inch diameter white acrylic cylinders up to eight feet in length. An aluminum bottom disk supports the acrylic cylinder, and an optional downlight can be added to deliver more than 2,000 lumens. Drivers can be located in a metal housing at top of fixture, in ceiling canopy, or remote.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LP-572-08

Dia: 8" x H: 24"     OAH: 48''

LED

  • P57 Body Only (57w)
    • Lumens: 6042 (delivered)
    • Wattage: 57
  • P80 Body (57w) + Downlight (23w)
    • Lumens: 8210 (delivered)
    • Wattage: 80
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-572-10

Dia: 10" x H: 24"     OAH: 48''

LED

  • P57 Body Only (57w)
    • Lumens: 6042 (delivered)
    • Wattage: 57
  • P80 Body (57w) + Downlight (23w)
    • Lumens: 8210 (delivered)
    • Wattage: 80
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-572-12

Dia: 12" x H: 24"     OAH: 48''

LED

  • P57 Body Only (57w)
    • Lumens: 6042 (delivered)
    • Wattage: 57
  • P80 Body (57w) + Downlight (23w)
    • Lumens: 8210 (delivered)
    • Wattage: 80
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-573-08

Dia: 8" x H: 36"     OAH: 60''

LED

  • P86 Body Only (86w)
    • Lumens: 9065 (delivered)
    • Wattage: 86
  • P110 Body (86w) + Downlight (23w)
    • Lumens: 11233 (delivered)
    • Wattage: 109
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-573-10

Dia: 10" x H: 36"     OAH: 60''

LED

  • P86 Body Only (86w)
    • Lumens: 9065 (delivered)
    • Wattage: 86
  • P110 Body (86w) + Downlight (23w)
    • Lumens: 11233 (delivered)
    • Wattage: 109
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-573-12

Dia: 12" x H: 36"     OAH: 60''

LED

  • P86 Body Only (86w)
    • Lumens: 9065 (delivered)
    • Wattage: 86
  • P110 Body (86w) + Downlight (23w)
    • Lumens: 11233 (delivered)
    • Wattage: 109
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-574-08

Dia: 8" x H: 48"     OAH: 72''

LED

  • P115 Body Only (115w)
    • Lumens: 12088 (delivered)
    • Wattage: 115
  • P138 Body (115w) + Downlight (23w)
    • Lumens: 14256 (delivered)
    • Wattage: 138
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-574-10

Dia: 10" x H: 48"     OAH: 72''

LED

  • P115 Body Only (115w)
    • Lumens: 12088 (delivered)
    • Wattage: 115
  • P138 Body (115w) + Downlight (23w)
    • Lumens: 14256 (delivered)
    • Wattage: 138
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-574-12

Dia: 12" x H: 48"     OAH: 72''

LED

  • P115 Body Only (115w)
    • Lumens: 12088 (delivered)
    • Wattage: 115
  • P138 Body (115w) + Downlight (23w)
    • Lumens: 14256 (delivered)
    • Wattage: 138
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-576-08

Dia: 8" x H: 72"     OAH: 96''

LED

  • P173 Body Only (173w)
    • Lumens: 18133 (delivered)
    • Wattage: 173
  • P196 Body (173w) + Downlight (23w)
    • Lumens: 20301 (delivered)
    • Wattage: 196
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-576-10

Dia: 10" x H: 72"     OAH: 96''

LED

  • P173 Body Only (173w)
    • Lumens: 18133 (delivered)
    • Wattage: 173
  • P196 Body (173w) + Downlight (23w)
    • Lumens: 20301 (delivered)
    • Wattage: 196
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-576-12

Dia: 12" x H: 72"     OAH: 96''

LED

  • P173 Body Only (173w)
    • Lumens: 18133 (delivered)
    • Wattage: 173
  • P196 Body (173w) + Downlight (23w)
    • Lumens: 20301 (delivered)
    • Wattage: 196
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-578-08

Dia: 8" x H: 96"     OAH: 120''

LED

  • P230 Body Only (230w)
    • Lumens: 24177 (delivered)
    • Wattage: 230
  • P253 Body (230w) + Downlight (23w)
    • Lumens: 26345 (delivered)
    • Wattage: 253
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-578-10

Dia: 10" x H: 96"     OAH: 120''

LED

  • P230 Body Only (230w)
    • Lumens: 24177 (delivered)
    • Wattage: 230
  • P253 Body (230w) + Downlight (23w)
    • Lumens: 26345 (delivered)
    • Wattage: 253
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-578-12

Dia: 12" x H: 96"     OAH: 120''

LED

  • P230 Body Only (230w)
    • Lumens: 24177 (delivered)
    • Wattage: 230
  • P253 Body (230w) + Downlight (23w)
    • Lumens: 26345 (delivered)
    • Wattage: 253
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

Finish Codes:
Housing, Stem & Canopy: PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Single Stem (SIN)
Single Stem (SIN)
Aircraft cable with cord (KBL)
Aircraft cable with cord (KBL)

  1. OAH is standard unless specified.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  3. HOUSING: White 1/8" thick extruded acrylic cylinder diffuser with white painted aluminum bottom disk. Aluminum driver housing.
  4. MOUNTING: Fixture supplied with canopy, 45-degree swivel ball and hanger for mounting to standard octagon junction box.
  5. CIRCUITS: Dual-level circuiting for interior lamps and downlight (if specified) standard.
  6. DOWNLIGHT: Downlight increases H and OAH dimensions by 2".
  7. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
  8. DKC CANOPY: Canopy is 6" dia. (D2 dim.) for P57 option. All others use 12" dia canopy (D3 dim.).
  9. ETL listed to UL standards for dry and damp locations.
