Rosy
Tags: new, LED, large scale, Round, Ring

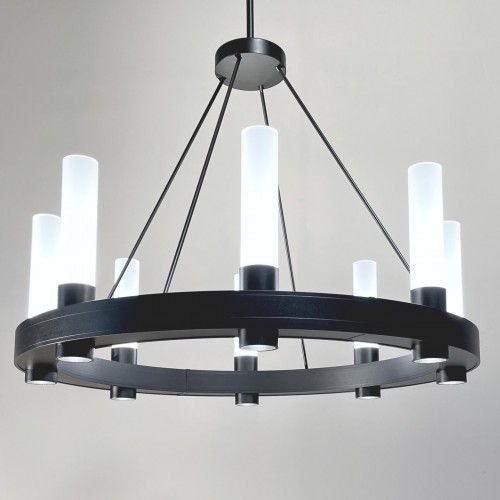

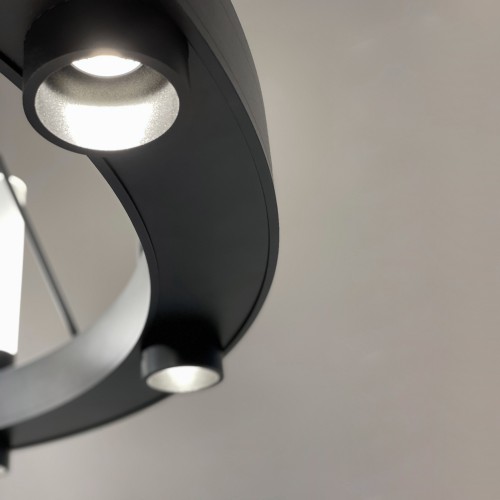

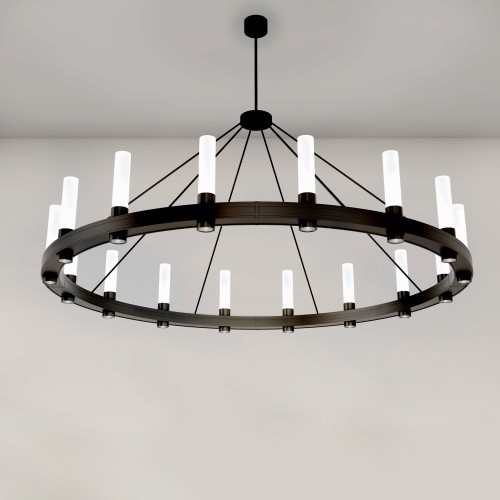

Rosy is an elegant ring pendant with clean lines, great performance, and plenty of options. Sizes from two- to eight-feet diameter are standard, and the flexible extruded aluminum construction allows custom sizes and shapes only limited by your imagination. Highly efficient LEDs provide ample uplight, as well as optional downlights recessed into a machined bezel to minimize glare. The dimmable constant current drivers are concealed in the ring structure yet are easily accessible for maintenance. Rosy is supported by a single stem mounting with lower satellite support rods (number depends on size specified).
Fixtures
CP-102
Dia: 24" W: 3" x H: 24" OAH: 50"
-
CH28 (4) Uplights
- Lumens: 2300 up delivered
- Wattage: 28
-
DCH28 (4) Downlights
- Lumens: 2300 down delivered
- Wattage: 28
-
CH56 (4) Uplights + (4) Downlights
- Lumens: 2300 up/2300 down delivered
- Wattage: 56
- Downlight Optic Options
- B25 - 25-deg. beam reflector
- B35 - 35-deg. beam reflector
- B50 - 50-deg. beam reflector
- CCT: 27K, 30K, 35K, 40K
- CRI: 90
- L70 @ 50,000 hrs.
- Dimming options
- D0:0-10v
- D1:Triac (Leading Edge)*
- D2:ELV (Trailing Edge)
CP-103
Dia: 36" W: 3" x H: 27.75" OAH: 66"
-
CH42 (6) Uplights
- Lumens: 3500 up delivered
- Wattage: 42
-
DCH42 (6) Downlights
- Lumens: 3500 down delivered
- Wattage: 42
-
CH84 (6) Uplights + (6) Downlights
- Lumens: 3500 up/3500 down delivered
- Wattage: 84
- Downlight Optic Options
- B25 - 25-deg. beam reflector
- B35 - 35-deg. beam reflector
- B50 - 50-deg. beam reflector
- CCT: 27K, 30K, 35K, 40K
- CRI: 90
- L70 @ 50,000 hrs.
- Dimming options
- D0:0-10v
- D1:Triac (Leading Edge)*
- D2:ELV (Trailing Edge)
CP-104
Dia: 48" W: 4" x H: 37" OAH: 87"
-
CH55 (8) Uplights
- Lumens: 4650 up delivered
- Wattage: 55
-
DCH55 (8) Downlights
- Lumens: 4650 down delivered
- Wattage: 55
-
CH111 (8) Uplights + (8) Downlights
- Lumens: 4650 up/4650 down delivered
- Wattage: 111
- Downlight Optic Options
- B25 - 25-deg. beam reflector
- B35 - 35-deg. beam reflector
- B50 - 50-deg. beam reflector
- CCT: 27K, 30K, 35K, 40K
- CRI: 90
- L70 @ 50,000 hrs.
- Dimming options
- D0:0-10v
- D1:Triac (Leading Edge)*
- D2:ELV (Trailing Edge)
CP-106
Dia: 72" W: 4" x H: 51" OAH: 115"
-
CH83 (12) Uplights
- Lumens: 7000 up delivered
- Wattage: 83
-
DCH83 (12) Downlights
- Lumens: 7000 down delivered
- Wattage: 83
-
CH165 (12) Uplights + (12) Downlights
- Lumens: 7000 up/7000 down delivered
- Wattage: 165
- Downlight Optic Options
- B25 - 25-deg. beam reflector
- B35 - 35-deg. beam reflector
- B50 - 50-deg. beam reflector
- CCT: 27K, 30K, 35K, 40K
- CRI: 90
- L70 @ 50,000 hrs.
- Dimming options
- D0:0-10v
- D1:Triac (Leading Edge)*
- D2:ELV (Trailing Edge)
CP-108
Dia: 96" W: 4" x H: 61.75" OAH: 126"
-
CH110 (16) Uplights
- Lumens: 9350 up delivered
- Wattage: 110
-
DCH110 (16) Downlights
- Lumens: 9350 down delivered
- Wattage: 110
-
CH220 (16) Uplights + (16) Downlights
- Lumens: 9350 up/9350 down delivered
- Wattage: 220
- Downlight Optic Options
- B25 - 25-deg. beam reflector
- B35 - 35-deg. beam reflector
- B50 - 50-deg. beam reflector
- CCT: 27K, 30K, 35K, 40K
- CRI: 90
- L70 @ 50,000 hrs.
- Dimming options
- D0:0-10v
- D1:Triac (Leading Edge)*
- D2:ELV (Trailing Edge)
