Manning Lighting Nuville Cornice Ceiling DC-851

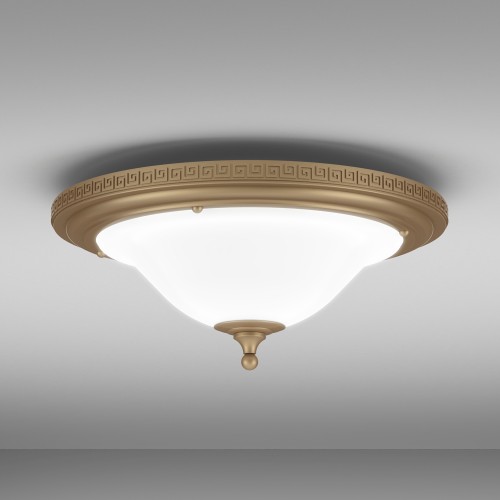

Nuville Cornice Ceiling

An elegant decorative cast trim band available in three patterns complements the curved acrylic diffuser on the Nuville Cornice series. An efficient LED source provides even illumination without glare. Choose from aluminum or brass material.

Fixtures

DC-851

Dia: 23" x H: 11"

LED

C26
- Lumens: 2178 (delivered)
- Wattage: 26
C38
- Lumens: 3118 (delivered)
- Wattage: 38
CCT: 27K, 30K, 35K, 40K
CRI: >80
L70 @ 50,000 hrs.
Dimming options
- D0:0-10v
- D1:Triac (Leading Edge)*
- D2:ELV (Trailing Edge)

Non-LED Lamps

2N60 (2) 60 watt incandescent

Downloads

Photometrics for 2N60

Photometrics for C26

Photometrics for C38

Photos for download

Finishes

Finish Codes:
BA or PT or PB or SAB or FAB
Cast Band Design: EGD or GRK or ROP

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

Polished Brass (PB)

Solid Antique Brass (SAB)

Faux Antique Brass (FAB)

Egg & Dart Cast Trim (EGD)

Greek Key Cast Trim (GRK)

Rope Cast Trim (ROP)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Material

Diffuser Codes: WH or FX

Opal White Acrylic (WH)

Faux Alabaster Acrylic (FX)

Notes

FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
HOUSING: Consists of spun aluminum or brass ring trimmed with cast aluminum or brass band. Acrylic bell diffuser and painted white canopy.
MOUNTING: Fixture mounts to a standard octagonal junction box.
ETL listed to UL standards for dry and damp locations
*Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
