Manning Lighting
LP-252-PT(DCP)-PT(MCP)-8N10/1R300-ECR-120-IV
LP-252-PT(LSV)-PT(DSV)-P88-35-D0-B60-120-WH
LP-252-PT(DCP)-PT(MCP)-P88-35-D0-B60-120-WH
LP-252-PT(MGD)-PT(FAB)-P88-35-D0-B60-120-WH
LP-252-PT(DSV)-PT(BLK)-P88-35-D0-B60-120-WH
LP-252-PT(DCP)-PT(MCP)-8N10/1R300-ECR-120-IV Hover to Zoom
LP-252-PT(DCP)-PT(MCP)-8N10/1R300-ECR-120-IV — download hi-res image
LP-252-PT(LSV)-PT(DSV)-P88-35-D0-B60-120-WH
LP-252-PT(LSV)-PT(DSV)-P88-35-D0-B60-120-WH — download image
LP-252-PT(DCP)-PT(MCP)-P88-35-D0-B60-120-WH
LP-252-PT(DCP)-PT(MCP)-P88-35-D0-B60-120-WH — download image
LP-252-PT(MGD)-PT(FAB)-P88-35-D0-B60-120-WH
LP-252-PT(MGD)-PT(FAB)-P88-35-D0-B60-120-WH — download image
LP-252-PT(DSV)-PT(BLK)-P88-35-D0-B60-120-WH
LP-252-PT(DSV)-PT(BLK)-P88-35-D0-B60-120-WH — download image

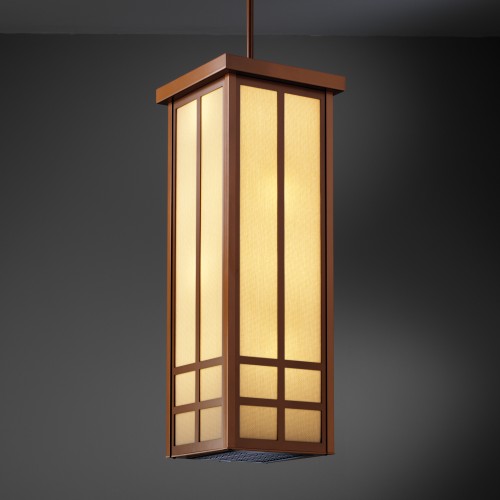

Greene Pendant

Tags: arts and crafts, panels, best seller, LED

The Greene series pays tribute to the simple refinement of Mission style architectural design. The extruded frame, top, and bottom can be specified with a brushed aluminum or painted finish while the metal panels can have a matching finish or brushed or antique brass. Combine powerful and efficient LED downlight and uplight options to create the perfect lighting solution for your project. The LED downlight and reflector are recessed in a bottom bezel to help reduce glare, or specify a bottom eggcrate louver.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LP-250

W: 9" x H: 23" x L: 9"     OAH: 49''

LED

  • P27 Body only w/bottom lens (27W)
    • Lumens: 2730 (delivered)
    • Wattage: 27
  • P63 Body (27w) + Downlight (36w)
    • Lumens: 5471 (delivered)
    • Wattage: 63
  • Downlight Optic Options
    • B60 - 60-deg. beam reflector
    • B90 - 90-deg. beam reflector
    • ECR - Black Egg Crate Louver (approx. 40-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 1N200 200 watt A-21 med. base

LP-252

W: 11.5" x H: 31.5" x L: 11.5"     OAH: 69''

LED

  • P40 Body only w/bottom lens (40w)
    • Lumens: 3796 (delivered)
    • Wattage: 40
  • P88 Body (40w) + Downlight (48w)
    • Lumens: 8128 (delivered)
    • Wattage: 88
  • U18 Optional Uplight (18w)
    • Lumens: 1613 (delivered)
    • Wattage: 18
  • Downlight Optic Options
    • B60 - 60-deg. beam reflector
    • B90 - 90-deg. beam reflector
    • ECR - Black Egg Crate Louver (approx. 40-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 8N100 / 1R300 (8) 100 watt incandescent (1) 300 watt R40 med. base

LP-254

W: 13.5 x H: 37.5" x L: 13.5"     OAH: 88''

LED

  • P54 Body only w/bottom lens (54w)
    • Lumens: 5555 (delivered)
    • Wattage: 54
  • P109 Body (54w) + Downlight (55w)
    • Lumens: 11760 (delivered)
    • Wattage: 109
  • P150 Body (54w) + Downlight (96w)
    • Lumens: 14818 (delivered)
    • Wattage: 150
  • U44 Optional Uplight (44w)
    • Lumens: 4038 (delivered)
    • Wattage: 44
  • Downlight Optic Options
    • B60 - 60-deg. beam reflector
    • B90 - 90-deg. beam reflector
    • ECR - Black Egg Crate Louver (approx. 40-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 10N100 / 1R500 (10) 100 watt incandescent (1) 500 watt R40 med. base

Finish Codes:
Panel: BA or PT or FAB
Trim: BA or PT or FAB



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

Faux Antique Brass (FAB)

Faux Antique Brass (FAB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or IV or FX



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Ivory acrylic (IV)

Ivory acrylic (IV)

Faux Alabaster Acrylic (FX)

Faux Alabaster Acrylic (FX)

  1. OAH is standard unless specified.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  3. HOUSING: Solid aluminum top and bottom end caps, extruded aluminum corner posts and laser-cut aluminum accent panels.
  4. MOUNTING: Fixture supplied with painted canopy, 45-degree swivel ball and hanger for mounting to standard octagon junction box.
  5. CIRCUITS: Dual-level circuiting for interior lamps/downlight standard.
  6. ETL listed to UL standards for dry and damp locations
  7. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
