Manning Lighting
LPI-345-13-PT(BLK)-P63-35-D0-CON-120-WH
LPI-345-13-PT(BLK)-P63-35-D0-CON-120-WH Hover to Zoom
LPI-345-13-PT(BLK)-P63-35-D0-CON-120-WH — download hi-res image

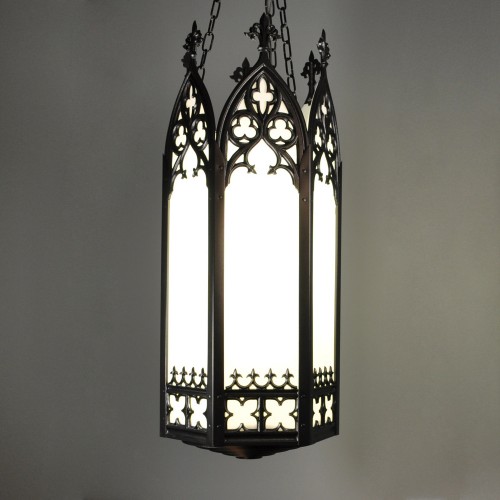

French Gothic Pendant

Tags: traditional, LED

Intricate cast aluminum panels lend this pendant a traditional French gothic style. State-of-the-art LED options direct light up, down, and through the diffuser panels for bright, comfortable illumination for any size space. Choose from several sizes and white or ivory acrylic panels. Other pendants and matching ceiling and wall sconces are also available.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LPI-345-11

Dia: 11.75" x H: 25"     OAH: 133''

LED

  • P27 Body only w/bottom lens (27W)
    • Lumens: 2730 (delivered)
    • Wattage: 27
  • P50 Body (14w) + Downlight (36w)
    • Lumens: 5881 (initial)
    • Wattage: 50
  • Downlight Optic Options
    • B60 - 60-deg. beam reflector
    • B90 - 90-deg. beam reflector
    • CON - Concentric Ring Louver (approx. 50-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 3N60 / 1R300 (3) 60 watt incandescent (1) 300 watt R40 med. base

LPI-345-13

Dia: 13.25" x H: 31"     OAH: 139''

LED

  • P27 Body only w/bottom lens (27W)
    • Lumens: 2730 (delivered)
    • Wattage: 27
  • P63 Body (27w) + Downlight (36w)
    • Lumens: 5471 (delivered)
    • Wattage: 63
  • Downlight Optic Options
    • B60 - 60-deg. beam reflector
    • B90 - 90-deg. beam reflector
    • CON - Concentric Ring Louver (approx. 50-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 6N60 / 1R500 (6) 60 watt incandescent (1) 500 watt R40 med. base

LPI-345-16

Dia: 16.5" x H: 37.5"     OAH: 145''

LED

  • P40 Body only w/bottom lens (40w)
    • Lumens: 3796 (delivered)
    • Wattage: 40
  • P136 Body (40w) + Downlight (96w)
    • Lumens: 16129 (initial)
    • Wattage: 136
  • U44 Optional Uplight (44w)
    • Lumens: 4038 (delivered)
    • Wattage: 44
  • Downlight Optic Options
    • B60 - 60-deg. beam reflector
    • B90 - 90-deg. beam reflector
    • CON - Concentric Ring Louver (approx. 50-deg. beam)

  • 6N60 / 1R500 (6) 60 watt incandescent (1) 500 watt R40 med. base

Finish Codes:
PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or IV or FX



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Ivory acrylic (IV)

Ivory acrylic (IV)

Faux Alabaster Acrylic (FX)

Faux Alabaster Acrylic (FX)

  1. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  2. HOUSING: Consists of solid cast aluminum trim panels with fabricated steel corner trim posts.
  3. MOUNTING: Fixture mounts to a standard octagonal junction box. LPI-345-16 must be attached to structure using a ceiling fan rated electrical box.
  4. OVERALL HEIGHT: Standard OAH includes fixture height plus 3' chain to spreader and 6' main chain to ceiling.
  5. CIRCUITS: Dual-level circuiting for interior lamps/downlight standard.
  6. ETL listed to UL standards for dry and damp locations
  7. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
