Manning Lighting
CP-281-PB-CH260-35-D0-120-WH
CP-281-PB-CH260-35-D0-120-WH Hover to Zoom
CP-281-PB-CH260-35-D0-120-WH — download hi-res image

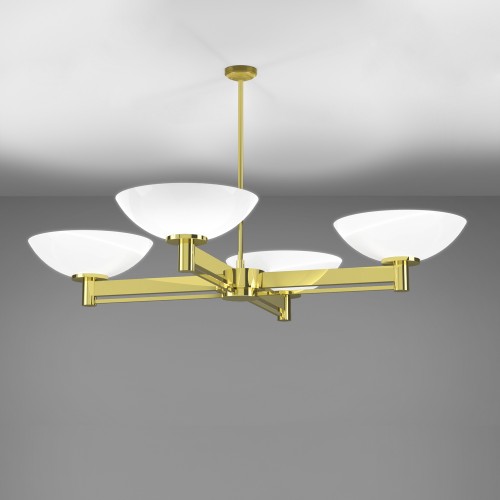

Fleur Chandelier

Tags: value, LED, large scale

The two- or four-bowl Fleur chandelier is designed with illuminating large spaces in mind. Efficient LEDs provide both up and downlight and are available in several color temperatures and dimming standards. A spun aluminum or brass bottom finial accents the white opal or faux alabaster acrylic bowls.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

CP-280

Dia: 60" x H: 9"     OAH: 29''

LED

  • CH64 Two Bowls - Up & Downlight
    • Lumens: 1097 up/1097 dn per bowl (delivered)
    • Wattage: 64
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 6N100 (6) 100 watt incandescent

CP-281

Dia: 60" x H: 9"     OAH: 29''

LED

  • CH128 Four Bowls - Up & Downlight
    • Lumens: 1097 up/1097 dn per bowl (delivered)
    • Wattage: 128
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 12N100 (12) 100 watt incandescent

CP-282

Dia: 72" x H: 10"     OAH: 41''

LED

  • CH129R Two Bowls - Up & Downlight
    • Lumens: 2545 up/1855 dn per bowl (delivered)
    • Wattage: 129
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 8N100 (8) 100 watt incandescent

CP-283

Dia: 72" x H: 10"     OAH: 41''

LED

  • CH256R Four Bowls - Up & Downlight
    • Lumens: 2545 up/1855 dn per bowl (delivered)
    • Wattage: 256
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • 16N100 (16) 100 watt incandescent

Finish Codes:
BA or PT or PB



Brushed Solid Aluminum (BA)

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

Polished Brass (PB)

Polished Brass (PB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or FX



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Faux Alabaster Acrylic (FX)

Faux Alabaster Acrylic (FX)

Single Stem (SIN)
Single Stem (SIN)
Satellite Rods (QAD)
Satellite Rods (QAD)

  1. HOUSING: Consists of acrylic or spun aluminum bowls with aluminum arms.
  2. MOUNTING: CP-280 & 282: Fixture specified with brushed or painted finish supplied with swivel hanger for mounting to standard octagon junction box. Fixture specified with brass material supplied with swivel hanger requiring attachment to structure using a ceiling fan rated electrical box. CP-281 & CP-283: Fixture supplied with a painted canopy, 60-degree swivel ball and hanger. Structural support is required for this heavy fixture. 2 x 4 blocking or 1/2" IP stud extending 1/2" below finished ceiling through center of octagonal junction box is required.
  3. ETL listed to UL standards for dry and damp locations
  4. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
