Manning Lighting Elements Ceiling CC-390

Elements Ceiling

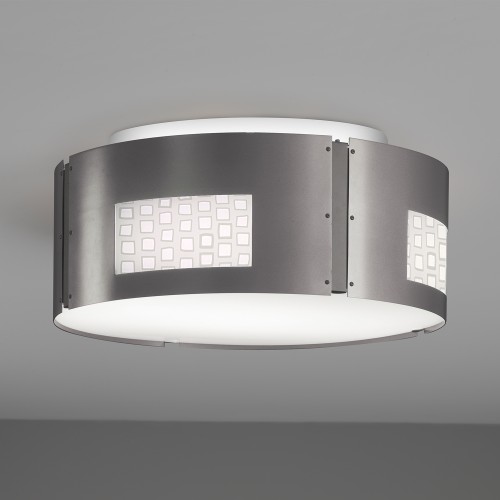

Spun aluminum drum with four attached panels with windows to showcase your choice of diffuser. Concentric outer panels include four windows for white or ambia diffuser accents. Inner spun housing available in matching or complementary finish. A bottom lens is standard in opal white acrylic.

Fixtures

CC-390

Dia: 18" x H: 8"

LED

C26
- Lumens: 2178 (delivered)
- Wattage: 26
C38
- Lumens: 3118 (delivered)
- Wattage: 38
CCT: 27K, 30K, 35K, 40K
CRI: >80
L70 @ 50,000 hrs.
Dimming options
- D0:0-10v
- D1:Triac (Leading Edge)*
- D2:ELV (Trailing Edge)

Non-LED Lamps

3N60 (3) 60 watt incandescent

Downloads

Photometrics for C26

Photometrics for C38

Photos for download

Finishes

Finish Codes:
Primary Finish: BA or PT
Secondary Finish: BA or PT

Brushed Solid Aluminum (BA)

Standard Painted Finishes (PT)

Specify PT(XXX).

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Material

Diffuser Codes: WH or CD

Opal White Acrylic (WH)

Ambia configured diffuser (specify option) (CD)

Specify CD(XXX).

Notes

FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options. Primary finish is outer aluminum trim panels. Secondary finish is inner housing and accent hardware.
HOUSING: Heavy gauge spun solid aluminum drum, hardware, and solid aluminum trim panels can be ordered with complementary finishes. The solid aluminum reflector lamp plate is coated with a reflective white enamel finish.
MOUNTING: Fixture is supplied with a universal mounting strap assembly that attaches to a standard octagonal junction box.
ETL listed to UL standards for dry and damp locations
*Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
