Vera Pendant

Tags: new, LED

Vera offers a modern (and more affordable) spin on Manning Lighting's traditional Gothic-style fixtures. Instead of castings, Vera's decorative panels are made with laser-cut aluminum sheet formed into a hexagonal housing shape. Three design options are available, or create your own design. Three sizes are available, and all feature efficient and powerful LED options for illuminating any size space.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LP-700

Dia: 12" x H: 22"     OAH: 48''

LED

  • P27 Body only w/bottom lens (27W)
    • Lumens: 2730 (delivered)
    • Wattage: 27
  • P63 Body (27w) + Downlight (36w)
    • Lumens: 5471 (delivered)
    • Wattage: 63
  • Downlight Optic Options
    • B60 - 60-deg. beam reflector
    • B90 - 90-deg. beam reflector
    • CON - Concentric Ring Louver (approx. 50-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
  • 1N200 200 watt A-21 med. base

LP-702

Dia: 13.25" x H: 30"     OAH: 68''

LED

  • P40 Body only w/bottom lens (40w)
    • Lumens: 3796 (delivered)
    • Wattage: 40
  • P88 Body (40w) + Downlight (48w)
    • Lumens: 8128 (delivered)
    • Wattage: 88
  • U18 Optional Uplight (18w)
    • Lumens: 1613 (delivered)
    • Wattage: 18
  • Downlight Optic Options
    • B60 - 60-deg. beam reflector
    • B90 - 90-deg. beam reflector
    • CON - Concentric Ring Louver (approx. 50-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
  • 8N100 / 1R300 (8) 100 watt incandescent (1) 300 watt R40 med. base

LP-704

Dia: 16.25" x H: 36"     OAH: 86''

LED

  • P54 Body only w/bottom lens (54w)
    • Lumens: 5555 (delivered)
    • Wattage: 54
  • P109 Body (54w) + Downlight (55w)
    • Lumens: 11760 (delivered)
    • Wattage: 109
  • P150 Body (54w) + Downlight (96w)
    • Lumens: 14818 (delivered)
    • Wattage: 150
  • U44 Optional Uplight (44w)
    • Lumens: 4038 (delivered)
    • Wattage: 44
  • Downlight Optic Options
    • B60 - 60-deg. beam reflector
    • B90 - 90-deg. beam reflector
    • CON - Concentric Ring Louver (approx. 50-deg. beam)
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
  • 10N100 / 1R500 (10) 100 watt incandescent (1) 500 watt R40 med. base
Finish Codes:
Housing: PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH or IV



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Ivory acrylic (IV)

Ivory acrylic (IV)

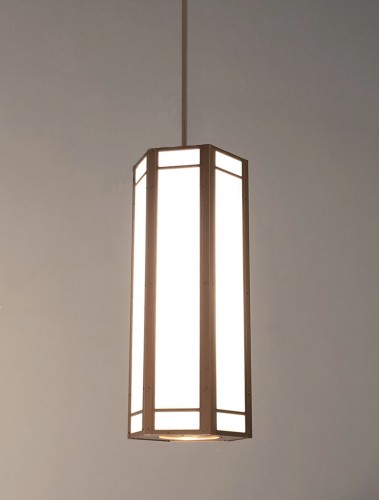

Vera Window (V1)
Vera Window (V1)

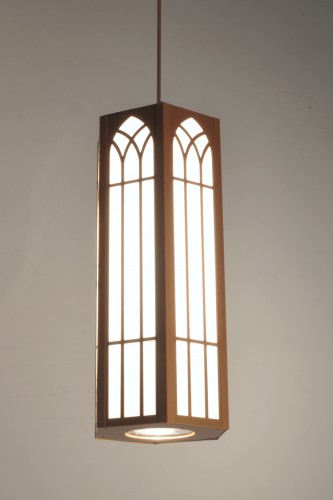

Vera Arch (V2)
Vera Arch (V2)

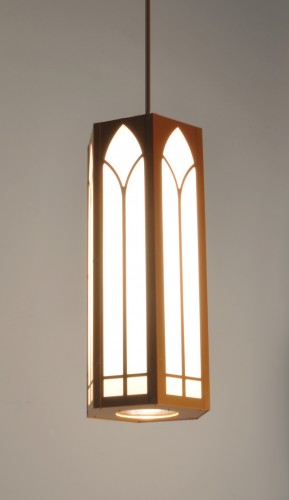

Vera Multi-Arch (V3)
Vera Multi-Arch (V3)
  1. DIMMING: For a current list of recommended LED dimmers for line-voltage (Triac or ELV) systems see: https://www.manningltg.com/led-dimming.html
  2. OAH is standard unless specified.
  3. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  4. HOUSING: Solid top and bottom aluminum plates, aluminum corner posts, laser-cut aluminum panels.
  5. MOUNTING: Fixture supplied with painted canopy, 45-degree swivel ball and hanger for mounting to standard octagon junction box.
  6. CIRCUITS: Dual-level circuiting for interior lamps/downlight standard.
  7. ETL listed to UL standards for dry and damp locations.
  8. DIMMING: *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
