Manning Lighting
LP-672-04-PT(LSV)-P30-35-120-WH-REM
LP-672-06-PT(LSV)-P58-35-120-WH-REM

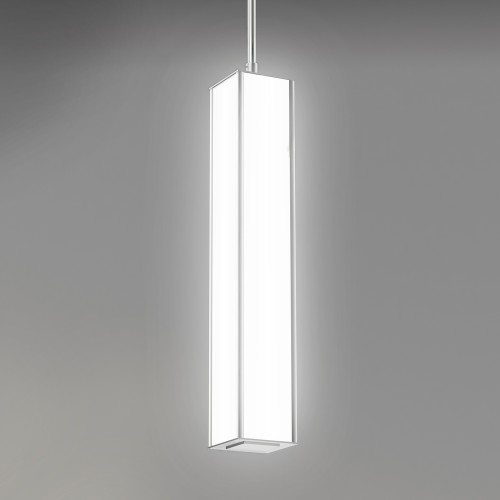

LP-672-04-PT(LSV)-P30-35-120-WH-REM Hover to Zoom
LP-672-04-PT(LSV)-P30-35-120-WH-REM — download hi-res image

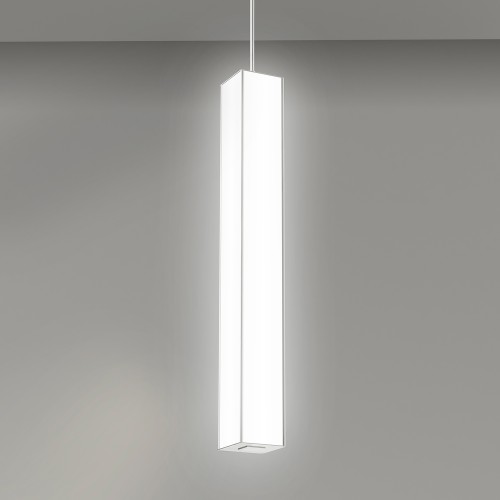

LP-672-06-PT(LSV)-P58-35-120-WH-REM Hover to Zoom
LP-672-06-PT(LSV)-P58-35-120-WH-REM — download hi-res image

Stilt Square

Tags: new, LED

The Stilt Square series is sleek, clean, and unabshedly minimalist. But it still packs a substantial lumen package, with efficacy of more than 125 Lm/W. Four- or six-inch wide acrylic panels up to eight feet tall are held in place with a minimal aluminum extrusion. An aluminum bottom panel or optional downlight are at bottom. Drivers can be located in a metal housing at top of fixture, in ceiling canopy, or remote.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LP-672-04

W: 4" x H: 24" x L: 4"     OAH: 48''

LED

  • P30 Body Only (24W)
    • Lumens: 3021 (delivered)
    • Wattage: 24
  • P41 Body (24w) + Downlight (11w)
    • Lumens: 4246 (delivered)
    • Wattage: 35
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-672-06

W: 6" x H: 24" x L: 6"     OAH: 48''

LED

  • P30 Body Only (24W)
    • Lumens: 3021 (delivered)
    • Wattage: 24
  • P41 Body (24w) + Downlight (11w)
    • Lumens: 4246 (delivered)
    • Wattage: 35
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-673-04

W: 4" x H: 36" x L: 4"     OAH: 60''

LED

  • P44 Body Only (36W)
    • Lumens: 4532 (delivered)
    • Wattage: 36
  • P56 Body (36w) + Downlight (11w)
    • Lumens: 5757 (delivered)
    • Wattage: 47
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-673-06

W: 6" x H: 36" x L: 6"     OAH: 60''

LED

  • P44 Body Only (36W)
    • Lumens: 4532 (delivered)
    • Wattage: 36
  • P56 Body (36w) + Downlight (11w)
    • Lumens: 5757 (delivered)
    • Wattage: 47
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-674-04

W: 4" x H: 48" x L: 4"     OAH: 72''

LED

  • P58 Body Only (48W)
    • Lumens: 6042 (delivered)
    • Wattage: 48
  • P69 Body (48w) + Downlight (11w)
    • Lumens: 7267 (delivered)
    • Wattage: 59
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-674-06

W: 6" x H: 48" x L: 6"     OAH: 72''

LED

  • P58 Body Only (48W)
    • Lumens: 6042 (delivered)
    • Wattage: 48
  • P69 Body (48w) + Downlight (11w)
    • Lumens: 7267 (delivered)
    • Wattage: 59
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-676-04

W: 4" x H: 72" x L: 4"     OAH: 96''

LED

  • P87 Body Only (72W)
    • Lumens: 9064 (delivered)
    • Wattage: 72
  • P98 Body (72w) + Downlight (11w)
    • Lumens: 10289 (delivered)
    • Wattage: 83
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-676-06

W: 6" x H: 72" x L: 6"     OAH: 96''

LED

  • P87 Body Only (72W)
    • Lumens: 9064 (delivered)
    • Wattage: 72
  • P98 Body (72w) + Downlight (11w)
    • Lumens: 10289 (delivered)
    • Wattage: 83
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-678-04

W: 4" x H: 96" x L: 4"     OAH: 120''

LED

  • P116 Body Only (96W)
    • Lumens: 12085 (delivered)
    • Wattage: 96
  • P127 Body (96w) + Downlight (11w)
    • Lumens: 13310 (delivered)
    • Wattage: 107
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

LP-678-06

W: 6" x H: 96" x L: 6"     OAH: 120''

LED

  • P116 Body Only (96W)
    • Lumens: 12085 (delivered)
    • Wattage: 96
  • P127 Body (96w) + Downlight (11w)
    • Lumens: 13310 (delivered)
    • Wattage: 107
  • Downlight Optic Options
    • B50 - 50-deg. beam reflector
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

  • INT Integral LED drivers. Increases H and OAH dimensions by 11.5"
  • REM Remote driver box
  • DKC Disk ceiling driver canopy

Finish Codes:
PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



Opal White Acrylic (WH)

Opal White Acrylic (WH)

Single Stem (SIN)
Single Stem (SIN)
Aircraft cable with cord (KBL)
Aircraft cable with cord (KBL)

  1. OAH is standard unless specified.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  3. HOUSING: White 1/8" thick extruded acrylic diffuser and bottom lens. Extruded aluminum supports.
  4. MOUNTING: Fixture supplied with canopy, 45-degree swivel ball and hanger for mounting to standard octagon junction box.
  5. CIRCUITS: Dual-level circuiting for interior lamps and downlight (if specified) standard.
  6. ETL listed to UL standards for dry and damp locations.
  7. LED DRIVER: Integral driver option increases H and OAH dimensions by 11.5".
  8. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
  9. DKC CANOPY: Canopy is: 6" dia. (D2 dim.) for P30, P44, P58 options. All others use 12" dia canopy (D3 dim.).
  10. DOWNLIGHT: Downlight increases H and OAH dimensions by 2".
