Manning Lighting
LBE-560-08-PP(LTM)-E45-35-120-WH
LBE-560-08-PP(LTM)-E45-35-120-WH Hover to Zoom
LBE-560-08-PP(LTM)-E45-35-120-WH — download hi-res image

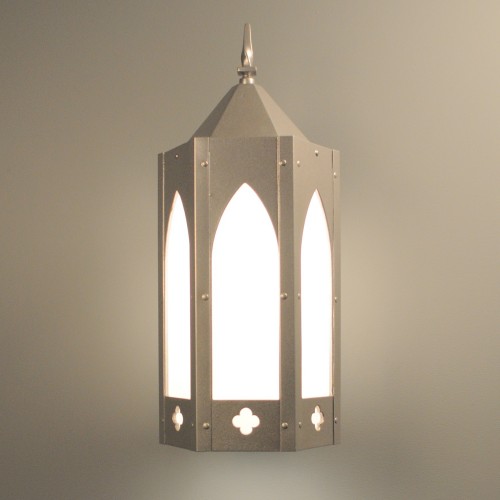

Gothic Exterior Sconce (LBE-560)

Tags: traditional, LED, exterior, outdoor

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

LBE-560-08

W: 8" x H: 21" Ext: 10.25"

Non-LED Lamps

  • 1N100 (1) 100 watt incandescent

LBE-560-09

W: 9.75" x H: 32" Ext: 10.75"

Non-LED Lamps

  • 1N150 (1) 150 watt incandescent

LBE-560-11

W: 11" x H: 39" Ext: 11.75"

Non-LED Lamps

  • 1N200 200 watt A-21 med. base

Finish Codes:
PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



Opal White Acrylic (WH)

Opal White Acrylic (WH)

  1. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  2. HOUSING: Consists of solid cast aluminum trim panels with fabricated steel corner trim posts.
  3. MOUNTING: Fixture mounts to a standard octagonal junction box.
  4. ETL listed to UL standards for dry and damp locations
