Manning Lighting
DP-802-PT(MSV)-A48-35-UNV-WH
DP-802-PT(MSV)-A48-35-UNV-WH Hover to Zoom
DP-802-PT(MSV)-A48-35-UNV-WH — download hi-res image

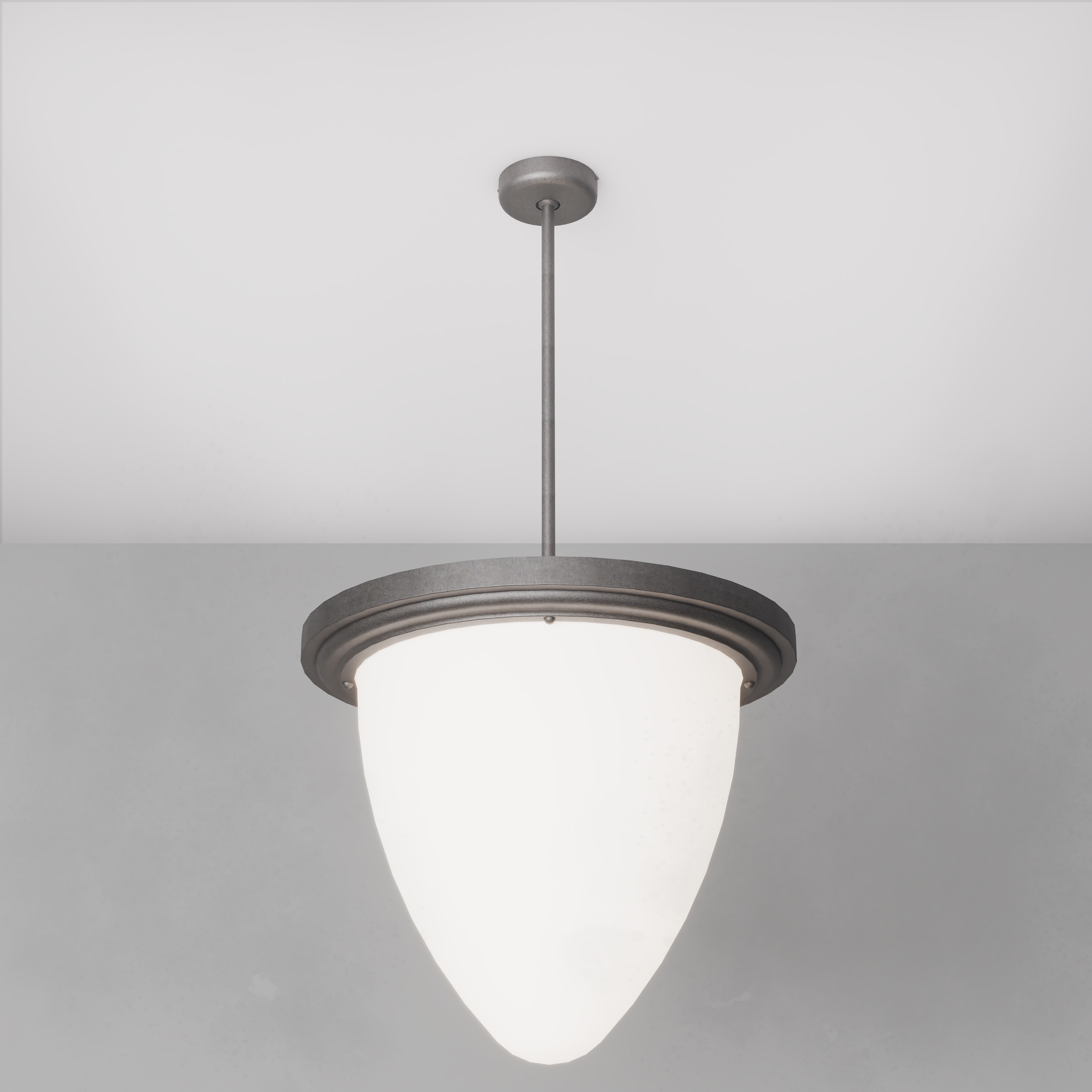

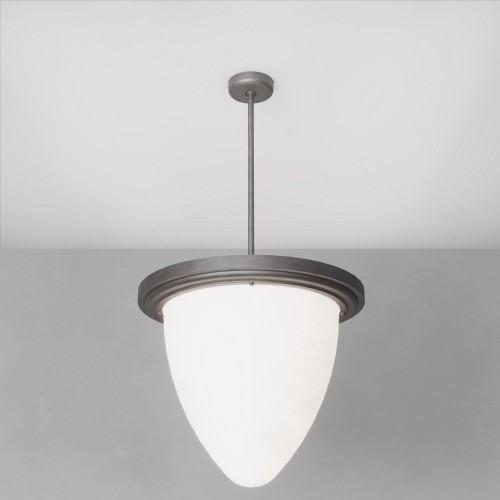

Akron Pendant

Tags: classic, LED, new

A nutty, funky, slightly elongated acorn shape is the Akron's claim to fame. A spun trim ring holds the acrylic diffuser and LED components (including drivers) at top. Several sizes provide a range of performance uplight and downlight options.

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

DP-800

Dia: 12.75" x H: 11.75"     OAH: 36"

LED

  • A32 Akron
    • Lumens: 2676 Initial
    • Wattage: 32
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

DP-802

Dia: 19.5" x H: 18"     OAH: 48"

LED

  • A48 Akron
    • Lumens: 5514 Initial
    • Wattage: 48
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)

Finish Codes:
Housing, Stem & Canopy: PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: WH



White Acrylic (WH)

White Acrylic (WH)

  1. OAH is standard unless specified.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint or clear lacquer. Specify three digit color suffix with "PT" finish options.
  3. HOUSING: Consists of a spun aluminum or brass trim ring with an acrylic bowl diffuser and choice of stem kit.
  4. MOUNTING: Fixture supplied with a painted canopy, 45-degree swivel ball and hanger for mounting to standard octagon junction box.
  5. ETL listed to UL standards for dry and damp locations
  6. *Surge protection recommended for use with D1 (Triac/Leading Edge) dimming systems.
